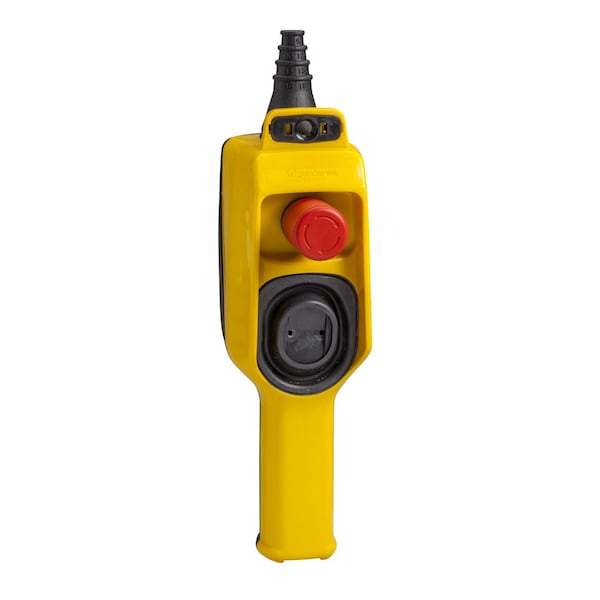

Estación de control colgante, Harmony XAC, de plástico, color amarillo, con 1 botón de presión direccional de 2 direcciones.
| Item | Pendant station XAC-D - 1 rocker lever |
|---|---|
| Contact Form | 1NO+ 1NO |
| Legend | Reverse |
| Type of Operator | double insulated |
| Contact Rating | slow-break |
| Standards | EN/IEC 60947-5-1 || EN/IEC 60204-32 || UL 508 || CSA C22.2 No 14 |
| Mechanical Interlock | with mechanical interlocking |
| Enclosure Material | polypropylene |
| Cable Entry | rubber sleeve with stepped entry 7-18 mm |
| Operator Color | Yellow |
| Application | control of single speed hoist motor |
| IP Rating | IP65 conforming to IEC 60529 |
| Voltage | 600 V |
| Terminal Connection | screw clamp terminal |
| Range of Product | Harmony XAC |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Operating Force | 16-16 N |
| Protective Treatment | TH |
| Control Station Composition | 1 2-directional button |
| Ik Degree of Protection | IK08 conforming to IEC 62262 |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Electrical Circuit Type | Control circuit |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Maximum Resistance Across Terminals | 25 MOhm |
| [Ithe] Conventional Enclosed Thermal Current | 10A |
| Ambient Air Temperature For Operation | -25-70°C |
| Control Type | intuitive |
| Terminal Identifier | NC, NO |
| Product or Component Type | control station |
| Terminals Description Iso N°1 | NO |
| Product Compatibility | ZB2BE101 for each direction |
| Control Button Type | first direction button 1 NO raise, slow, second direction button 1 NO lower, slow |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Enclosure Type | complete ready for use |
| Shock Resistance | 70 gn IEC 60068-2-27 |
| Overvoltage Category | class II IEC 61140 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Mechanical Durability | 3,000,000 cycle |
| Device Short Name | XACD |
| Package Quantity | 1 |
