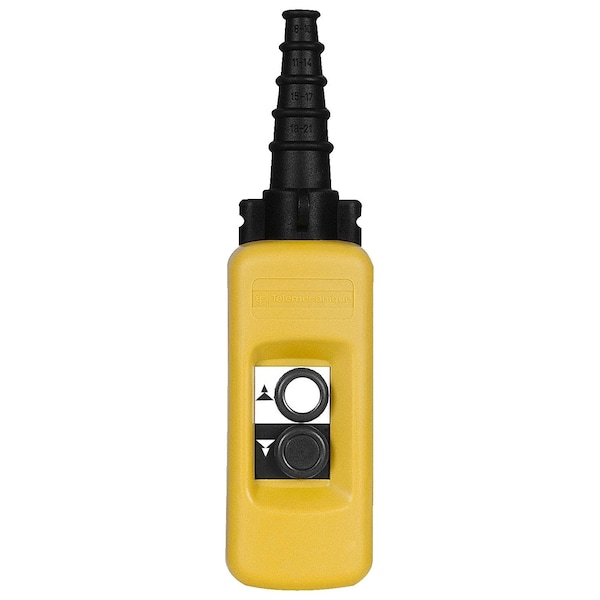

Estación de control colgante, Harmony XAC, plástico, amarillo, 2 botones push con 2NA+1NC.
| Item | Pendant control station XAC-A - 2 pushbu |
|---|---|
| Standards | UL 508, CSA C22.2 No 14, EN/IEC 60204-32, EN/IEC 60947-5-1 |
| Enclosure Material | Polypropylene |
| Range of Product | Harmony XAC |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Maximum Resistance Across Terminals | 25 MOhm |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TH |
| Control Station Colour | yellow |
| Terminal Identifier | NC, NO |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C, 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C, 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class II IEC 61140 |
| Cable Entry | rubber sleeve with stepped entry 8-26 mm |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Device Short Name | XACA |
| Product or Component Type | control station |
| Ip Degree of Protection | IP65 conforming to IEC 60529 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Electrical Circuit Type | control circuit |
| [Ui] Rated Insulation Voltage | 600 V 3) |
| Terminals Description Iso N°1 | NC, NO_CL, NO |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Ambient Air Temperature For Operation | -25-70°C |
| Operating Force | 18-18 N push-button |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | complete ready for use |
| Mechanical Durability | 1,000,000 cycle |
| Contact Operation | slow-break, staggered |
| Product Compatibility | XENG1191 for each direction |
| Mechanical Interlocking | with mechanical interlocking |
| Connections - Terminals | screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end, screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
| Control Station Type | double insulated |
| Control Button Type | first push-button 1 NC + 2 NO raise, slow-fast, second push-button 1 NC + 2 NO lower, slow-fast |
| Ik Degree of Protection | IK08 EN 50102 |
| Control Station Application | control of 2-speed hoist motor |
| Control Station Composition | 2 push-buttons |
| Product Certifications | GOST || CCC |
| Package Quantity | 1 |
