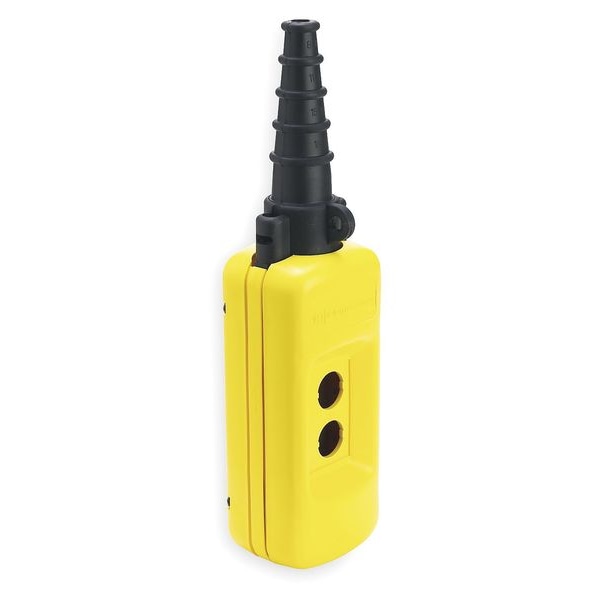

Caja de Montaje para Colgante, 22mm, 2 Orificios, IP65.
| Item | Pendant Enclosure |
|---|---|
| Type of Operator | double insulated |
| Color | Yellow |
| NEMA Rating | 4, 4X |
| Standards | CSA, EN/IEC, IP65, RoHS, UL Listed |
| Material | Plastic |
| Hole Size | 22 mm |
| Cable Entry | 0.31 in to 1.02 in |
| Includes | Cable Sleeve |
| Number of Holes | 2 |
| Enclosure Material | polypropylene |
| IP Rating | IP65 |
| Operator Color | Yellow |
| Product Certifications | GOST; CCC; CSA; UL |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Guard Rail | Without |
| Protective Treatment | TH |
| Mechanical Durability | 1,000,000 cycle |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Overvoltage Category | Class II IEC 61140 |
| Product Or Component Type | Pendant control station |
| Enclosure Type | Empty enclosure |
| Vertical Operator Cut-Out Centre | 1.18 in (30 mm) |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Electrical Circuit Type | Control circuit |
| Number Of Cut-Out | 2 cut-outs |
| IK Degree Of Protection | IK08 EN 50102 |
| Vibration Resistance | 15 gn 10 to 500 Hz)IEC 60068-2-6 |
| Cable Entry Type | Rubber Sleeve |
| NEMA Enclosure Rating | 1, 4, 4X, 5 |
| Rubber Sleeve Cable Entry Size - Maximum | 1.02 in |
| Rubber Sleeve Cable Entry Size - Minimum | 0.31 in |
| Compatible Panel Cutout Diameter | 30 mm |
| Compatible with Series | XAC |
| Compatible with Brand | Schneider |
| Open Cable Entry Size | Not Applicable |
| Package Quantity | 1 |
