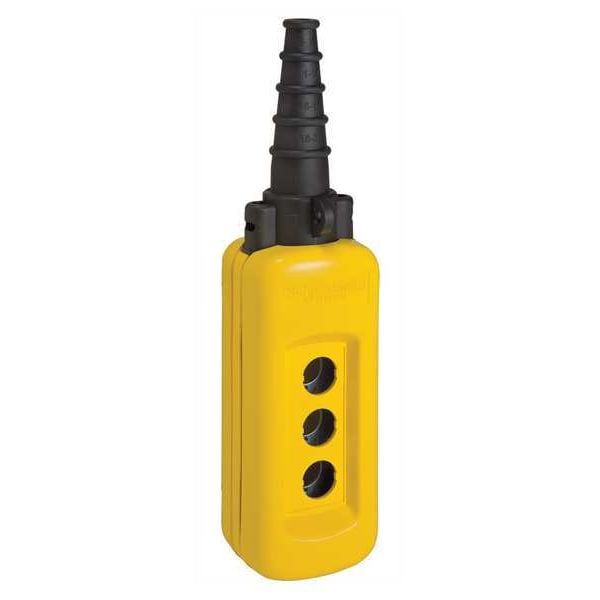

Caja colgante de 22mm con 3 orificios, ideal para proteger y resguardar dispositivos eléctricos en entornos industriales.
| Item | Pendant Enclosure |
|---|---|
| Hole Size | 22 mm |
| Material | Plastic |
| Number of Holes | 3 |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Cable Entry | 0.31 in to 1.02 in |
| Height | 12.36 in |
| Width | 3.15 in |
| Color | Yellow |
| Standards | CSA, EN/IEC, IP65, RoHS, UL Listed |
| For Use With | Mfr. No. ZB2BY2101 |
| Includes | Cable Sleeve |
| Enclosure Type | empty enclosure |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Guard Rail | Without |
| Overvoltage Category | class II IEC 61140 |
| Vertical Operator Cut-Out Centre | 30 mm |
| Control Station Colour | yellow |
| Number Of Cut-Out | 3 cut-outs |
| Control Station Type | double insulated |
| Protective Treatment | TH |
| Device Short Name | XACA |
| Product Certifications | CSA || GOST, UL || CCC |
| Mechanical Durability | 1,000,000 cycle |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Electrical Circuit Type | control circuit |
| Product Or Component Type | pendant control station |
| Enclosure material | polypropylene |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree Of Protection | IK08 EN 50102 |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Ambient Air Temperature For Operation | -25-70°C |
| Overall Width | 3-1/8 in |
| Compatible with Manufacturer Model Number | ZB2BY2101 |
| Overall Height | 12-3/8 in |
| Compatible Panel Cutout Diameter | 22 mm |
| Cable Entry Type | Rubber Sleeve |
| Compatible with Brand | Schneider |
| Rubber Sleeve Cable Entry Size - Maximum | 1.02 in |
| IP Rating | IP65 |
| Rubber Sleeve Cable Entry Size - Minimum | 0.31 in |
| Open Cable Entry Size | Not Applicable |
| NEMA Enclosure Rating | 1, 4, 4X, 5 |
| Compatible with Series | XAC |
| Compatible Manufacturer Part Number | ZB2BY2101 |
| Compatible Manufacturer Model Number | ZB2BY2101 |
| Compatible with Mfr. Model No. | ZB2BY2101 |
| For Use with Mfr Model Number | ZB2BY2101 |
| For Use With Mfr. Model Number | ZB2BY2101 |
| Package Quantity | 1 |
