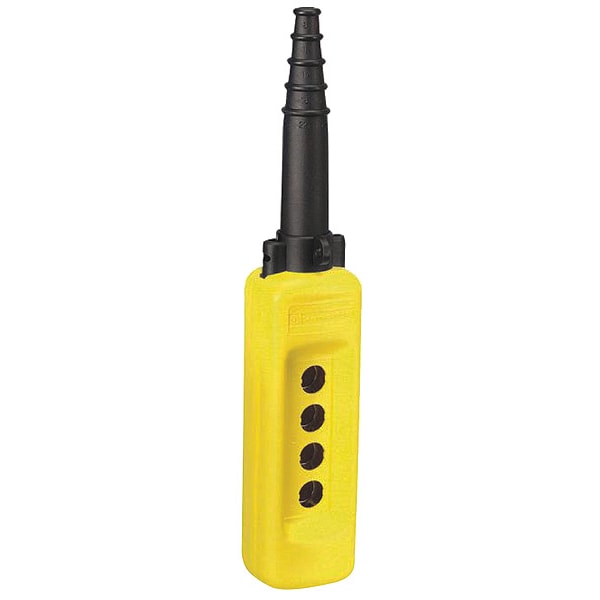

Recinto de colgante, 4 orificios, amarillo.
| Item | Pendant Enclosure |
|---|---|
| Material | Plastic |
| NEMA Rating | 1, 4, 4X, 5 |
| Color | Yellow |
| For Use With | Standard or Medium-Duty Control Circuit |
| Standards | IEC, IP65, RoHS |
| Includes | Cable Sleeve, Cable Tie, Internal Cable Clamp, Internal Mounting Plate, Suspension Ring |
| Ik Degree Of Protection | IK08 EN 50102 |
| Electrical Circuit Type | control circuit |
| Control Station Composition | 4 push-buttons |
| Enclosure material | polypropylene |
| Ambient Air Temperature For Operation | -25-70°C |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Product Or Component Type | control station |
| Enclosure Type | complete ready for use |
| Control Station Type | double insulated |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70°C |
| Device Short Name | XACA |
| Overvoltage Category | class II IEC 61140 |
| Mechanical Durability | 1,000,000 cycle |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| IP Rating | IP65 |
| Rubber Sleeve Cable Entry Size - Minimum | 0.31 in |
| Compatible with Brand | Schneider |
| Rubber Sleeve Cable Entry Size - Maximum | 1.02 in |
| Open Cable Entry Size | Not Applicable |
| Compatible with Series | XAC |
| NEMA Enclosure Rating | 1, 4, 4X, 5 |
| Cable Entry Type | Rubber Sleeve |
| Package Quantity | 1 |
