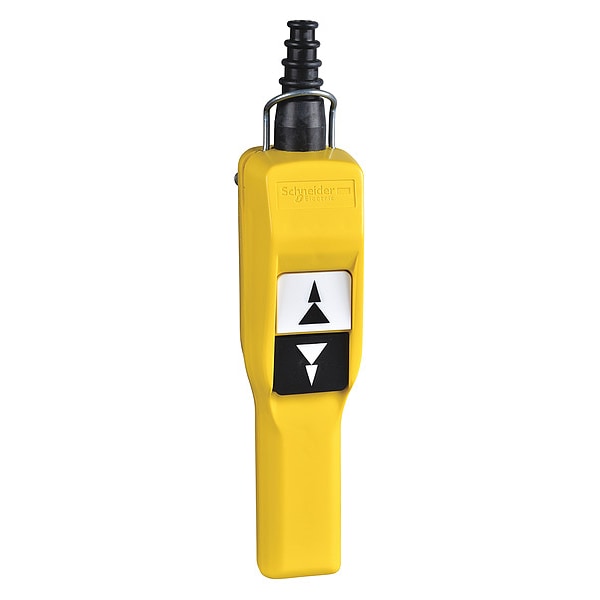

Estación colgante 600Vac 10A Xac + Opciones
| Action | Momentary |
|---|---|
| NEMA Rating | 4X |
| Type of Operator | Push Button |
| Contact Form | 2NO |
| Legend | Down, Up |
| Number of Operators | 2 |
| Item | Pendant Control Station |
| Standards | CSA, UL Listed |
| IP Rating | IP65 |
| Housing Material | Polypropylene |
| Mechanical Interlock | Yes |
| Depth | 4.02 in |
| Housing Color | Yellow |
| Number of Speeds | 2 |
| Hub | 9/32 in to 19/32 in |
| Height | 11.46 in |
| Width | 2.6 in |
| Enclosure Material | Plastic |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V |
| Series | XACA |
| Enclosure Color | Yellow |
| Number of Pilot Lights | 0 |
| Operator Color | Black, White |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 250 V |
| Product Type | Control Station |
| Control Station Type | double insulated |
| Control Station Composition | 2 push-buttons |
| Mechanical Interlocking | with mechanical interlocking |
| Ambient Air Temperature For Storage | -40-70°C |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Product Compatibility | ZB2BE101 + ZB2BE201 for each direction |
| Terminal Identifier | AI1, AI2 |
| Control Type | intuitive |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Protective Treatment | TH |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Product Certifications | CSA || UL |
| Control Button Type | first push-button 2 NO (2 step) raise, slow-fast || second push-button 2 NO (2 step) lower, slow-fast |
| Product Or Component Type | control station |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Control Station Colour | yellow |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Cable Entry | rubber sleeve with stepped entry 7-15 mm |
| Maximum Resistance Across Terminals | 25 MOhm |
| Device Short Name | XACA pistol grip |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Enclosure Type | complete ready for use |
| Mechanical Durability | 1,000,000 cycle |
| Overvoltage Category | class II IEC 61140 |
| Ik Degree Of Protection | IK08 EN 50102 |
| Ambient Air Temperature For Operation | -25-70°C |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Operating Force | 13-15 N |
| Control Station Application | control of 2-speed hoist motor |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Contact Operation | staggered |
| Electrical Circuit Type | control circuit |
| Terminals Description Iso N°1 | NO |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Conventional Enclosed Thermal Current | 10 A |
| Terminals Description Iso N°1 | NO |
| Pilot Light Color | Not Applicable |
| NEMA Enclosure Rating | 4, 4X, 1, 5 |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Mounting Orientation | Not Applicable |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Operator Configuration | Push Button |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 11.61 in |
| Operating Temperature - Maximum | 158 deg F |
| Hazardous Location Specification | Not Rated |
| Hub Size - Maximum | 9/16 in |
| Hub Style | Dead-End |
| Overall Width | 2.05 in |
| Overall Depth | 2.8 in |
| Selector Switch Number of Positions | Not Applicable |
| Panel Cutout Diameter | Not Applicable |
| Package Quantity | 1 |
