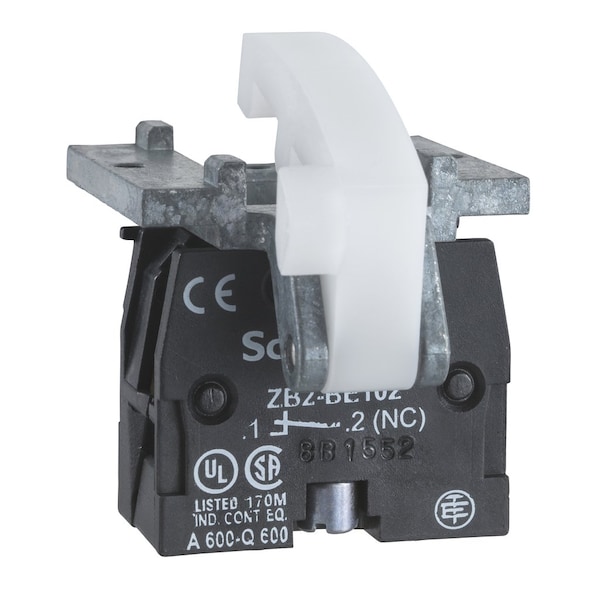

Estación de contacto de estación colgante 600Vca 10 A Xac
| Item | Pendant Push Button |
|---|---|
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 |
| [Ui] Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, 1 x 0.5 to 1 x 2.5 mm² without cable end || screw clamp terminals, 1 x 0.5 to 2 x 1.5 mm² with cable end |
| Contacts Type And Composition | 1 NC |
| Component Name | XACS |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Mechanical Durability | 1,000,000 cycle |
| Terminals Description Iso N°1 | NC |
| Overvoltage Category | class II IEC 61140 |
| Operating Force | 8 N |
| Electrical Circuit Type | control circuit |
| Contact Block Type | single |
| Maximum Resistance Across Terminals | 25 MOhm |
| Contact Operation | slow-break |
| Product Or Component Type | block |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Type Of Operator | spring return |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Mounting Of Block | base mounting |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Ambient Air Temperature For Storage | -40-70°C |
| Ambient Air Temperature For Operation | -25-70°C |
| Product Compatibility | XACA |
| Rated Operational Power In W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Conventional Enclosed Thermal Current | 10 A |
| Terminals Description Iso N°1 | NC |
| Package Quantity | 1 |
