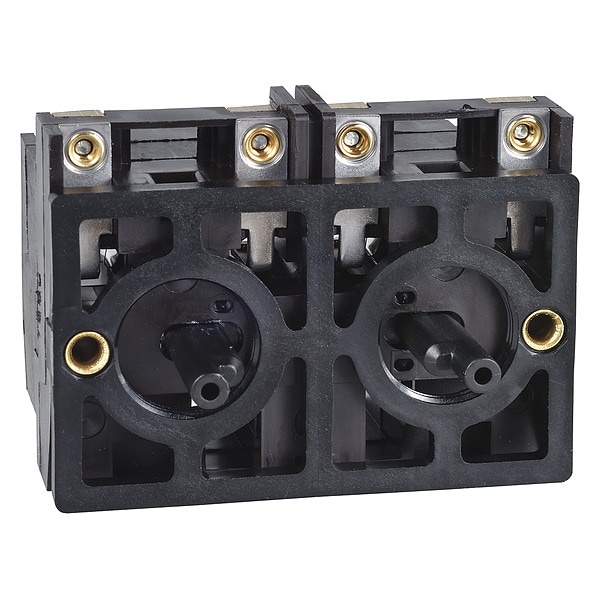

Contacto de interruptor tipo colgante 600Vac 10A Xe.
| Item | Contact Block |
|---|---|
| Standards | CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1 |
| Component Name | XESD |
| Contacts Type And Composition | 1 C, O + 1 NO |
| Mounting Of Block | front mounting |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Contact Block Application | 2-speed |
| Product Compatibility | XACB || XACM |
| Electrical Circuit Type | control circuit |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Rated Operational Power In Va | 100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive || 50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Operation | staggered |
| Operating Force | 15 N || 25 N |
| Ambient Air Temperature For Operation | -25-70°C |
| Terminals Description Iso N°1 | B || NO_CL || OF |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Electrical Shock Protection Class | class II IEC 61140 |
| Rated Operational Power In W | 140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C || 140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C |
| Mechanical Interlocking | with mechanical interlocking |
| Contact Block Type | double |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 |
| Terminal Identifier | NO || NC |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Terminals Description Iso N°2 | (43-44)NO_CL || (23-24-21-22)OF || B |
| Maximum Resistance Across Terminals | 25 MOhm |
| Type Of Operator | 2 spring return |
| Mechanical Durability | 1,000,000 cycle |
| Product Or Component Type | contact block |
| Terminals Description Iso N°2 | NO_CL || OF || B |
| Terminals Description Iso N°1 | B || NO_CL || OF |
| DC Contact Rating | 0.27 A @ 250 V |
| Compatible with Series | XACB, XACM |
| AC Contact Rating | 3 A @ 240 V |
| Includes Mounting Block | Mounting Block Included |
| Package Quantity | 1 |
