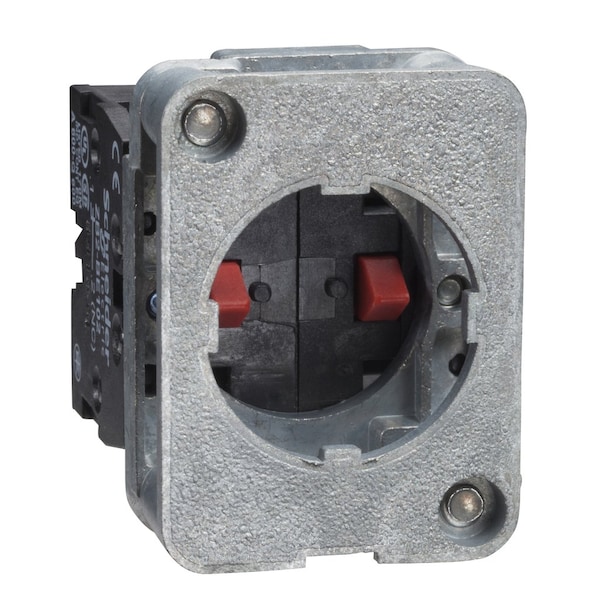

Contacto de bloque de estación colgante XACS414.
| Item | Contact Block |
|---|---|
| Standards | CSA C22.2 No 14 || IEC 60947-5-1 || EN 60947-5-1 |
| DC Contact Rating | 0.27 A @ 250 V |
| Compatible with Series | XACA, ZA2B |
| AC Contact Rating | 3 A @ 240 V |
| Includes Mounting Block | Mounting Block Included |
| Product Compatibility | ZA2B to head || XACA |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Contact Code Designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Type Of Operator | spring return |
| Conventional Enclosed Thermal Current | 10 A |
| Vertical Fixing Centres | 30 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Contact Block Type | single |
| Mechanical Interlocking | without mechanical interlock |
| Mounting Of Block | front mounting |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Electrical Circuit Type | control circuit |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70°C |
| Maximum Resistance Across Terminals | 25 MOhm |
| Contact Operation | slow-break |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Component Name | XACS |
| Connections - Terminals | screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Mechanical Durability | 1,000,000 cycle |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 |
| Product Or Component Type | contact block |
| Terminals Description Iso N°1 | NC |
| Contacts Type And Composition | 2 NC |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Horizontal Fixing Centres | 40 mm |
| Rated Operational Power In W | 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Rated Operational Power In Va | 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive || 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive |
| Terminal Identifier | NO || NC |
| Package Quantity | 1 |
