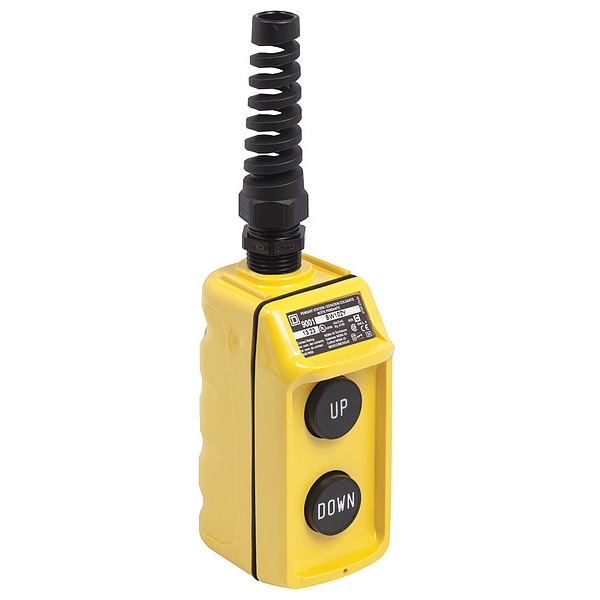

Estación colgante, leyenda arriba/abajo, Profundidad: 2.94 pulgadas.
| Item | Pendant Control Station |
|---|---|
| Contact Form | 2NO |
| Number of Gangs | 1 |
| Legend | Down, Up |
| Type of Operator | Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1, 3, 3R, 4, 4X |
| Hub Style | Dead-End |
| Standards | CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, UL 508 |
| Housing Color | Yellow |
| Mechanical Interlock | Yes |
| Hub | 1/2 in NPT |
| Depth | 2.94 in |
| Height | 4.69 in |
| Width | 2.19 in |
| Number of Speeds | 2 |
| NEMA Contact Rating Designation | P600, B600 |
| Housing Material | Polycarbonate, PET Polyester Blend |
| Enclosure Color | Yellow |
| Enclosure Material | Thermoplastic |
| Product Type | Pendant Control Station |
| NEMA Enclosure Rating | 1, 3, 3R, 4, 4X |
| AC Contact Rating | 5 A @ 600 V |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Pilot Light Color | Not Applicable |
| Overall Depth | 2.94 in |
| Overall Height | 4.69 in |
| Overall Width | 2.19 in |
| Operator Configuration | Buttons |
| Package Quantity | 1 |
