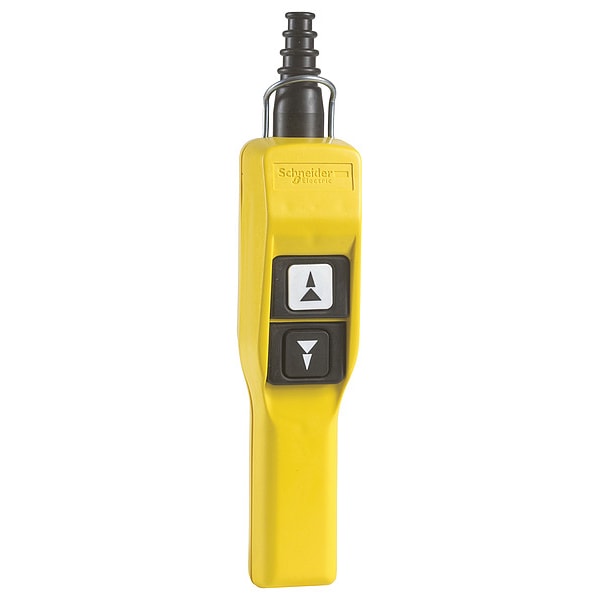

Estación de control colgante, extremo muerto, 2 botones, negro/blanco
| Item | Pendant Control Station |
|---|---|
| Contact Form | 2NO |
| Legend | Down, Up |
| Number of Pilot Lights | 0 |
| Type of Operator | Push Button |
| Number of Operators | 2 |
| Hub Style | Dead-End |
| Series | XACA |
| Standards | CSA, UL Listed |
| Contact Rating | slow-break || staggered |
| Housing Color | Yellow |
| Action | Momentary |
| Mechanical Interlock | Yes |
| Enclosure Color | Yellow |
| Application | control of 2-speed hoist motor |
| Voltage | 600 V |
| Number of Speeds | 2 |
| Terminal Connection | screw clamp terminal |
| IP Rating | IP65 |
| Operator Color | Black, White |
| Housing Material | Polypropylene |
| Enclosure Material | Plastic |
| Cable Entry | rubber sleeve with stepped entry 7-15 mm |
| Product Type | Pendant Control Station |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Overall Depth | 2.8 in |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V |
| Pilot Light Color | Not Applicable |
| Overall Width | 2.05 in |
| Mounting Orientation | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | Not Applicable |
| Hub Size - Maximum | 9/16 in |
| Overall Height | 11.61 in |
| Includes Mechanical Interlock | Mechanical Interlock Included |
| Selector Switch Number of Positions | Not Applicable |
| NEMA Enclosure Rating | 1, 4, 4X, 5 |
| Operator Configuration | Buttons |
| Maintained Action Release | Not Applicable |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 250 V |
| Hazardous Location Specification | Not Rated |
| Package Quantity | 1 |
