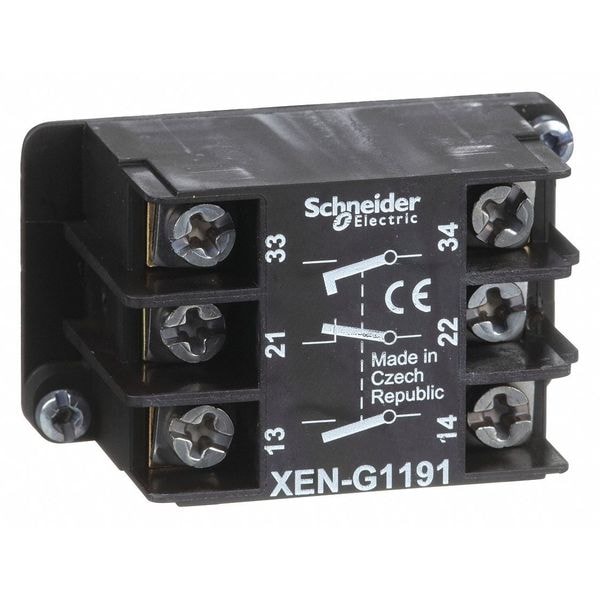

Bloque de Contacto Pendiente, 1NC+2NO Cierre Anticipado
| Item | Contact Block |
|---|---|
| Contact Form | 2NO/1NC |
| Color | Black |
| Size | 22 mm |
| For Use With | Schneider XACA, XACA9 Head |
| Contact Rating | 10A @ 600V AC/DC |
| Standards | CSA C22.2 No.14, EN/IEC 60947-5-1, UL 508 |
| Action | Momentary, Make |
| Terminal Connection | Clamp, Screw |
| NEMA Contact Rating Designation | A600, Q600 |
| Application | Pendent Station |
| Voltage | 600 V |
| Mounting | front mounting |
| Type Of Operator | spring return |
| Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Connections - Terminals | Screw clamp terminals, 1 x 0.5 to 1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5 to 2 x 1.5 mm² with cable end |
| Terminals Description ISO n°1 | NC ; NO, NO_CL |
| Rated Operational Power in W | 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C; 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C; 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Short-Circuit Protection | 10 A (fuse protection cartridge gG) |
| Conventional Enclosed Thermal Current | 10 A |
| Component Name | XENG |
| Contact Type and Composition | 1 NC + 2 NO |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Mechanical Durability | 1,000,000 cycle |
| Product Compatibility | XACA; XACA9 to head |
| Maximum Resistance Across Terminals | 25 MOhm |
| Overvoltage Category | Class II IEC 61140 |
| Operating Force | 18 N |
| Vibration Resistance | 15 gn 10 to 500 Hz)IEC 60068-2-6 |
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A |
| Contact Block Application | 2-speed |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Contact Operation | Slow-break |
| Contact Block Type | Single |
| Electrical Circuit Type | Control circuit |
| Terminals Description ISO n°1 | NC ; NO, NO_CL |
| Compatible Operator | Pilot Light, Push Button |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V |
| Connection Size | 22 mm |
| Includes Mounting Block | Mounting Block Included |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible with Series | XACA, XACA9 |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V |
| Manufacturer Warranty Length | 18 mo |
| Switch Action | Make, Momentary Before Break |
| Package Quantity | 1 |
