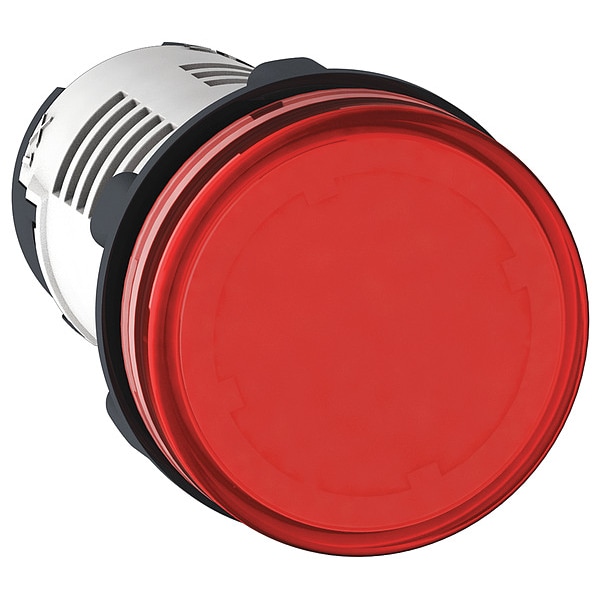

Luz piloto, 230 a 240VCA, Rojo, Lámpara LED
| Item | Pilot Light |
|---|---|
| Voltage | 230 to 240 V AC |
| Color | Red |
| Lamp Type | LED |
| Shape | Round |
| Contact Form | (X1-X2)PL |
| Terminal Connection | Screw Clamp |
| Lens Type | Fresnel |
| Size | 22 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| Length | 54 mm |
| Standards | REACH, RoHS, WEEE |
| Replacement Lamps | Integrated |
| Lamp Voltage | 230V AC |
| IP Rating | IP20, IP65 |
| Average Life | 70,000 hr |
| Height | 29 mm |
| Includes | Pilot Lights With Integral LED |
| Body Material | Plastic |
| NEMA Rating | 12, 4 |
| Width | 29 mm |
| Type | Steady Signal |
| Lens Color | Red |
| Voltage Rating - Maximum | 230 V AC |
| NEMA Enclosure Rating | 4, 12 |
| Series | XB7 |
| Includes Lens | Lens Included |
| Panel Cutout Diameter | 22 mm |
| Overall Width | 1.14 in |
| Lamp Color | Red |
| Overall Height | 1.14 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 2.13 in |
| Shape Of Screw Head | Cross JIS No 1; Cross Philips no 1; Cross pozidriv No 1; Slotted flat 4 mm; Slotted flat 5.5 mm |
| Overvoltage Category | Class II IEC 60536 |
| Rated Supply Voltage | 230 to 240 V AC 50/60 Hz |
| Fixing Mode | Fixing nut beneath head 17.70 to 21.24 lbf.in (2 to 2.4 N.m) |
| Vibration Resistance | 5 gn 2 to 500 Hz)IEC 60068-2-6 |
| Fixing Center | Greater than or Equal to 30 x 40 mm support panel) metal 0.04 to 0.24 in (1 to 6 mm); Greater than or Equal to 30 x 40 mm support panel) plastic 0.08 to 0.24 in (2 to 6 mm) |
| Mounting Diameter | 0.87 in |
| Ambient Air Temperature For Operation | -13 to 158°F |
| IP Degree Of Protection | IP20 IEC 60529 rear face; IP65 IEC 60529 front face) |
| Bulb Base | Integral LED |
| Device Presentation | monolithic product |
| Protective Treatment | TH |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to IEC 55011 |
| Connections - Terminals | Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1 |
| Service Life | 70000 h at rated voltage and 25°C |
| NEMA Degree Of Protection | NEMA 4 UL 50 E; NEMA 12 UL 50 E |
| Current Consumption | 16 to 20 mA |
| Signalling Type | Steady |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Tightening Torque | 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) IEC 60947-1 |
| Depth | 2.13 in |
| Device Mounting | Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 IEC 60947-5-1 |
| Supply Voltage Limits | 195 to 264 V AC |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Package Quantity | 1 |
