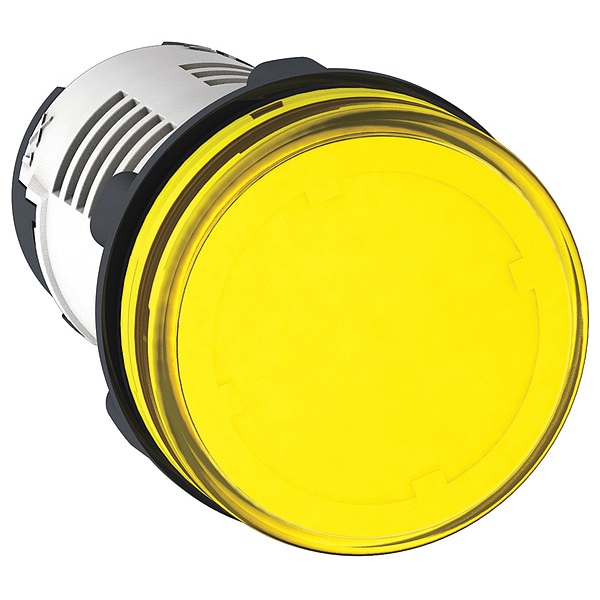

Pilot Light, 230 a 240VAC, Amarillo, Lámpara LED
| Item | Pilot Light |
|---|---|
| Voltage | 230 to 240 V AC |
| Color | Yellow |
| Lamp Type | LED |
| Shape | Round |
| Contact Form | (X1-X2)PL |
| Terminal Connection | Screw Clamp |
| Lens Type | Fresnel |
| Size | 22 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| Standards | REACH, RoHS, WEEE |
| Includes | Pilot Lights With Integral LED |
| Average Life | 70,000 hr |
| Replacement Lamps | Integrated |
| NEMA Rating | 12, 4 |
| Height | 29 mm |
| Type | Steady Signal |
| Width | 29 mm |
| Body Material | Plastic |
| Length | 54 mm |
| IP Rating | IP20, IP65 |
| Lamp Voltage | 230V AC |
| Lens Color | Yellow |
| Series | XB7 |
| Includes Lens | Lens Included |
| Overall Height | 1.14 in |
| NEMA Enclosure Rating | 4, 12 |
| Panel Cutout Diameter | 22 mm |
| Lamp Color | Yellow |
| Voltage Rating - Maximum | 230 V AC |
| Overall Width | 1.14 in |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 2.13 in |
| Package Quantity | 1 |
