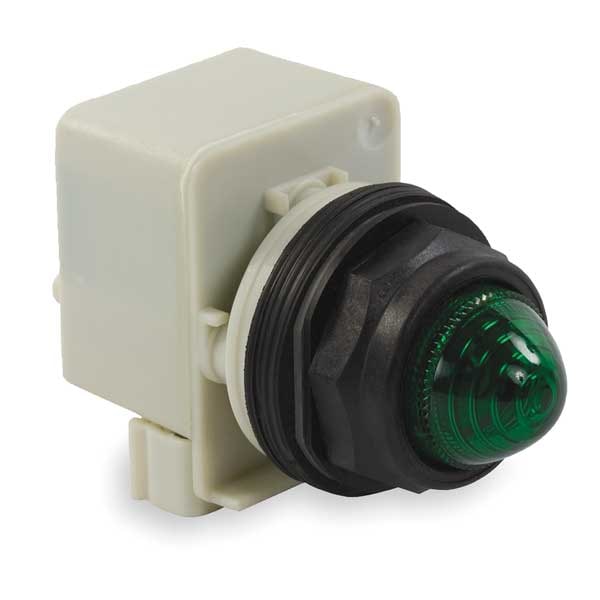

Indicador piloto, 30mm, plástico, verde, 120VAC.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Color | Green |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Lens Material | Polycarbonate |
| Bezel | Plastic |
| Size | 30 mm |
| Lens Type | Domed |
| Lamp Module Type | Transformer |
| Basic Material | Plastic |
| Body Material | Plastic |
| IP Rating | IP66 |
| Standards | REACH, RoHS, UL 508, WEEE |
| Lamp Voltage | 6V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Replacement Lamps | 4VCW2 |
| Hz | 50/60 Hz |
| Legend | Not Applicable |
| Vibration Resistance | 7 gn 2 to 500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Product Or Component Type | Pilot light |
| Connections - Terminals | Screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² EN/IEC 60947-1 |
| Device Presentation | Complete product |
| Operating Position | Any position |
| Conventional Free Air Thermal Current | 10 A |
| Supply Frequency | 50 to 60 Hz |
| Light Source | Incandescent bulb |
| NEMA Degree Of Protection | NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 4X |
| IP Degree Of Protection | IP66 IEC 60529 |
| Bulb Base | BA 9s |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Mounting Diameter | 1.18 in |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Rated Supply Voltage | 110 to 120 V AC 50/60 Hz |
| Shape Of Screw Head | Cross slotted |
| Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Light Block Supply | Via integral transformer 120 V AC 50/60 Hz 6 V) |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Product Certifications | UL 508; NEMA |
| Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 30 mm |
| Overall Width | 2.13 in |
| Lens Color | Green |
| Includes Push-To-Test | No Push-To-Test Included |
| Includes Lamp Module | Lamp Module Included |
| Hazardous Location Specification | Not Applicable |
| Resistance Properties | Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Overall Depth | 1.65 in |
| Voltage Rating - Maximum | 120 V AC |
| Includes Lens | Lens Included |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R, 1, 2 |
| Lamp Voltage - Maximum | 120 V AC |
| Series | 9001SK |
| Overall Height | 2.76 in |
| Lamp Color | Green |
| ATEX Explosive Environment Rating | Not Applicable |
| Package Quantity | 1 |
