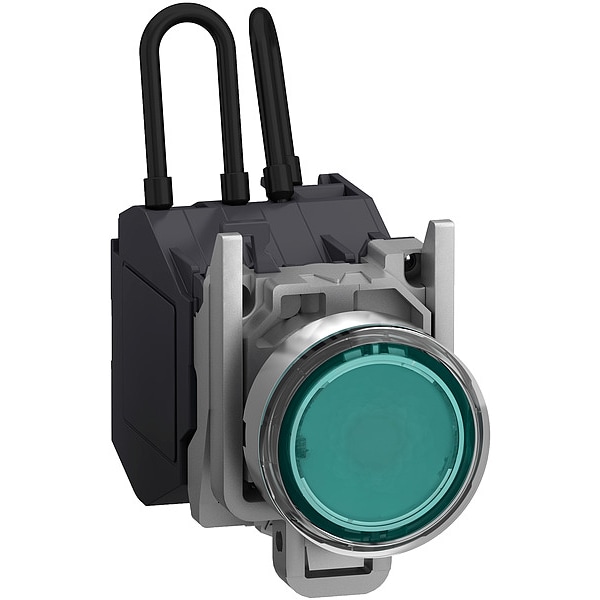

Indicador de encendido, verde, 22mm, LED.
| Item | Pilot Light |
|---|---|
| Voltage | 24 to 254V AC/DC |
| Color | Green |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Contact Form | 1 NO |
| Bezel | Chromium Plated Metal |
| Size | 22 mm |
| Lens Type | LED |
| Basic Material | Metal |
| Type | Steady Signal |
| Average Life | 100,000 hr |
| Body Material | Metal |
| Width | 46.2 mm |
| Lamp Voltage | 24 to 254V AC/V DC |
| IP Rating | IP66 |
| Length | 72 mm |
| Height | 30 mm |
| Standards | INERIS 04ATEX9004U, REACH, RoHS, WEEE |
| Safety Rating | Zone 2 |
| Lamp Voltage - Maximum | 254 V AC/DC |
| Overall Width | 1.82 in |
| Lens Color | Green |
| Lamp Color | Green |
| Panel Cutout Diameter | 22 mm |
| Overall Height | 1.18 in |
| Includes Push-To-Test | Push-To-Test Included |
| Voltage Rating - Maximum | 254 V AC/DC |
| Series | XB4 |
| Hazardous Location Specification | Not Applicable |
| Includes Lens | Lens Included |
| Overall Depth | 2.83 in |
| ATEX Explosive Environment Rating | Zone 1, Zone 2, Zone 21, Zone 22 |
| Package Quantity | 1 |
