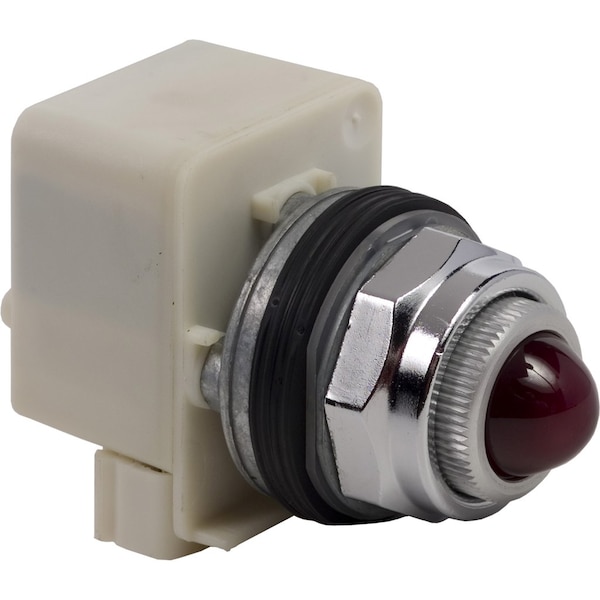

Piloto de luz, Harmony 9001K, metal, vidrio, abovedado, rojo, 30mm, 110-120V.
| Size | 30 mm |
|---|---|
| Item | PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS |
| Bezel Material | metal |
| Lens Material | Glass |
| Lens Type | domed glass |
| Standards | CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR |
| Operating Mode | normal |
| Device Short Name | K |
| Range of Product | Harmony 9001K |
| [Us] Rated Supply Voltage | 110...120 V |
| Supply Frequency | 50...60 Hz |
| Shape of Screw Head | round |
| Bulb Base | BA 9s |
| Light Block Supply | via transformer 120 V AC 50/60 Hz, via integral transformer 110 V AC 50/60 Hz |
| Cap/Operator or Lens Colour | red |
| Nema Degree of Protection | NEMA 1/2/3/3R/4/6/12/13 |
| Product or Component Type | Pilot light |
| Light Source | incandescent |
| Device Presentation | product |
| Mounting Diameter | 30 mm |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Operating Position | any position |
| Product Certifications | CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Package Quantity | 1 |
