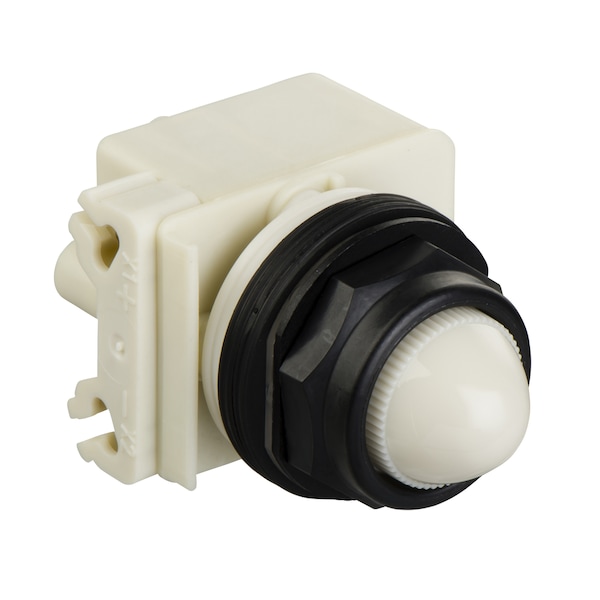

Luz piloto, Harmony 9001SK, plástico, policarbonato, abovedado, blanco, 30mm, LED blanco, 120V
| Item | WHITE LED PILOT LIGHT 120V 30MM T-SKP |
|---|---|
| Voltage | 120V |
| Color | White |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp terminals |
| Lens Material | Polycarbonate |
| Bezel | Plastic |
| Lens Type | Domed |
| Size | 30 mm |
| Standards | UL 508; JIS C 852; EN/IEC 60947-5-4; JIS C8201-5-1; EN/IEC 60947-1; CSA C22.2 No 14; EN/IEC 60947-5-1; JIS C8201-1; NEMA |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Height | 70 mm |
| IP Rating | IP66 |
| Width | 54 mm |
| Ip Degree of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Operation | -25-70°C |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| [Ith] Conventional Free Air Thermal Current | 10A |
| Shape of Screw Head | cross slotted |
| Ambient Air Temperature For Storage | -40-70°C |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V |
| Nema Degree of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Range of Product | Harmony 9001SK |
| Operating Position | Any position |
| Device Presentation | Complete product |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Bulb Base | BA 9s |
| Device Short Name | 9001SK |
| Light Block Supply | direct 120 V AC/DC |
| Product or Component Type | pilot light |
| Protective Treatment | TC |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | Class II IEC 61140 |
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Package Quantity | 1 |
