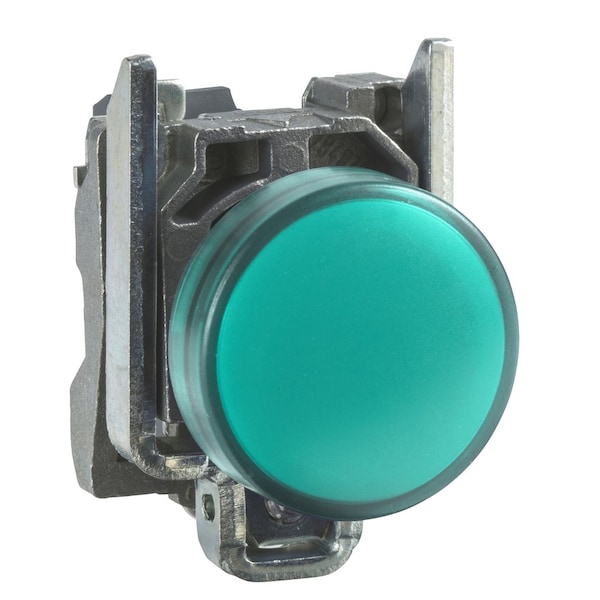

Piloto indicador, Harmony XB4, metal, verde, 22mm, LED universal, lente simple, 230...240V CA.
| Item | Protected Green Led Pilot Light 230-240V |
|---|---|
| NEMA Rating | NEMA 13 || NEMA 4X |
| Housing Color | Green |
| Standards | CSA || UL Listed |
| Width | 30 mm |
| Operator Color | Green |
| IP Rating | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Height | 47 mm |
| Voltage | 250 V |
| Depth | 54 mm |
| Lamp Type | universal LED |
| Header | standard |
| Terminal Connection | screw clamp terminal |
| Shape of Signaling Unit Head | round |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| [Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Product or Component Type | pilot light |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operator Additional Information | with plain lens |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Service Life | 100000 h at rated voltage and 25°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree of Protection | IK06 conforming to IEC 50102 |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Bulb Base | integral LED |
| Device Presentation | complete product |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Mounting Diameter | 22.5 mm |
| Electrical Shock Protection Class | class I IEC 60536 |
| Current Consumption | 14 mA |
| Signalling Type | steady |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Terminals Description Iso N°1 | PL |
| Device Short Name | XB4 |
| Fixing Collar Material | zamak |
| Electromagnetic Emission | class B IEC 55011 |
| Supply Voltage Limits | 195-264 V AC |
| Ambient Air Temperature For Operation | -40-70°C |
| Range of Product | Harmony XB4 |
| Protective Treatment | TH |
| Bezel Material | chromium plated metal |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Package Quantity | 1 |
