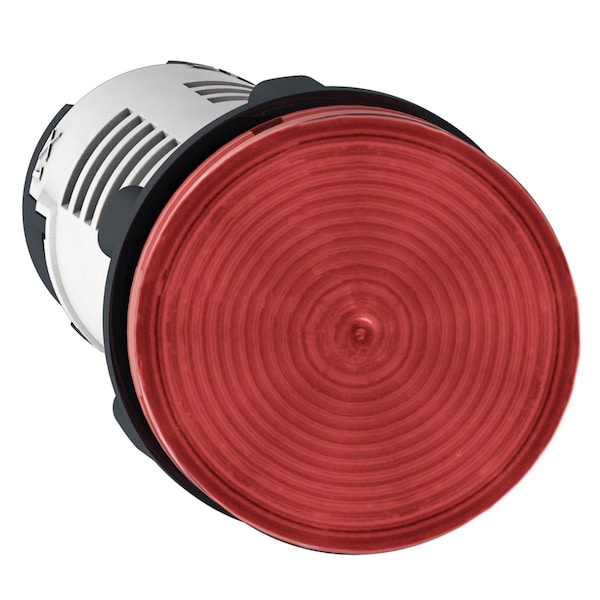

Indicador luminoso, Harmony XB7, redondo Ø22 mm, LED integrado, 230...240 V, conectores de terminal rápido.
| Item | Round pilot light 0 22 - red - integral |
|---|---|
| Height | 29 mm |
| Width | 29 mm |
| Depth | 54 mm |
| Standards | CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1 |
| Terminals Description Iso N°1 | PL |
| Supply Voltage Limits | 195-264 V AC |
| Connections - Terminals | Faston connectors 1 x 6.35 mm EN/IEC 60947-1 || Faston connectors 2 x 2.8 mm EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Current Consumption | 16 to 20 mA |
| Device Presentation | product |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Shape Of Signaling Unit Head | round |
| Shock Resistance | 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operator Additional Information | with plain lens |
| Light Source | LED |
| Nema Degree Of Protection | NEMA 4 UL 50 E || NEMA 12 UL 50 E |
| Mounting Diameter | 22 mm |
| Device Mounting | fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-5-1 |
| Signalling Type | steady |
| [Us] Rated Supply Voltage | 230 to 240 V AC 50/60 Hz |
| Fixing Center | >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm |
| Cap/Operator Or Lens Colour | red |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Overvoltage Category | class II IEC 60536 |
| Bulb Base | integral LED |
| Electromagnetic Compatibility | disturbing field emissionclass B EN 55011 |
| Protective Treatment | TH |
| Device Short Name | XB7 |
| Ip Degree Of Protection | IP20 IEC 60529 rear face) || IP65 IEC 60529 front face) |
| Ambient Air Temperature For Operation | -25-70°C |
| Fixing Mode | fixing nut beneath head 2-2.4 N.m |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Product Or Component Type | Pilot light |
| Service Life | 70000 h at rated voltage and 25°C |
| Range of Product | Harmony XB7 |
| Package Quantity | 1 |
