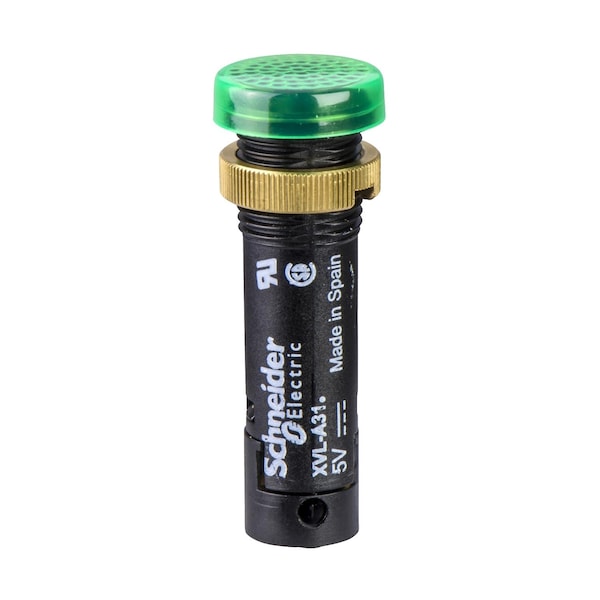

Indicador luminoso piloto, Harmony XVL, plástico, verde, 12mm, LED cubierto, 12V DC.
| Item | Pilot Light 12V 12Mm +Options |
|---|---|
| Voltage | 12V |
| Color | Green |
| Lamp Type | Covered LED |
| Terminal Connection | connector |
| Contact Form | (X1-X2)PL |
| Standards | UL; CSA |
| Height | 16 mm |
| Length | 51 mm |
| Width | 16 mm |
| IP Rating | IP65, IP40 |
| Average Life | 100,000 hr |
| Nominal Voltage Limit | 0.8...1.1 Un |
| Connections - Terminals | threaded connector 1 x 0.2...1 x 1.5 mm² |
| Component Name | XVL |
| [Ui] Rated Insulation Voltage | 50 V IEC 60947-1 |
| Product or Component Type | LED pilot light |
| Supply Circuit Type | DC |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70°C |
| Overvoltage Category | class 3 IEC 60536, class 3 NF C 20-030 |
| Bulb Lifespan | 100000 h |
| Ambient Air Temperature For Storage | -40-70°C |
| Range of Product | Harmony XVL |
| [Us] Rated Supply Voltage | 12 V |
| Mounting Diameter | 12 mm |
| Ip Degree of Protection | IP65 IEC 60529 with seal XVLZ912), IP65 NF C 20-010 with seal XVLZ912), IP40 IEC 60529, IP40 NF C 20-010 |
| Protection Type | Integral ballast resistor, built-in by diode |
| Current Consumption | 18 mA |
| Package Quantity | 1 |
