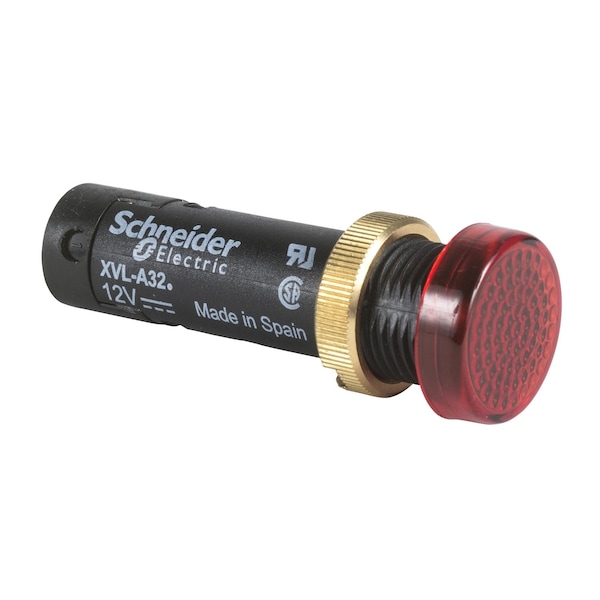

Indicador piloto, Harmony XVL, plástico, rojo, 12 mm, LED cubierto, 12V CC
| Item | Pilot Light 12V 12Mm +Options |
|---|---|
| Voltage | 12V |
| Color | Red |
| Lamp Type | Covered LED |
| Terminal Connection | connector |
| Contact Form | (X1-X2)PL |
| IP Rating | IP65, IP40 |
| Width | 16 mm |
| Standards | CSA; UL |
| Length | 51 mm |
| Average Life | 100,000 hr |
| Height | 16 mm |
| Depth | 2.01 in |
| IP Degree Of Protection | IP65 IEC 60529 with seal XVLZ912; IP65 NF C 20-010 with seal XVLZ912; IP40 IEC 60529; IP40 NF C 20-010 |
| Bulb Lifespan | 100000 h |
| Mounting Diameter | 0.47 in |
| Product Or Component Type | Pilot light |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Current Consumption | 18 mA |
| Connections - Terminals | Threaded connector 1 x 0.2 to 1 x 1.5 mm² |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Rated Insulation Voltage | 50 V IEC 60947-1 |
| Rated Supply Voltage | 12 V |
| Protective Treatment | TC |
| Component Name | XVL |
| Overvoltage Category | Class 3 IEC 60536; Class 3 NF C 20-030 |
| Nominal Voltage Limit | 0.8 to 1.1 Un |
| Protection Type | Integral ballast resistor, Built-in, diode |
| Supply Circuit Type | DC |
| Range of Product | Harmony XVL |
| Package Quantity | 1 |
