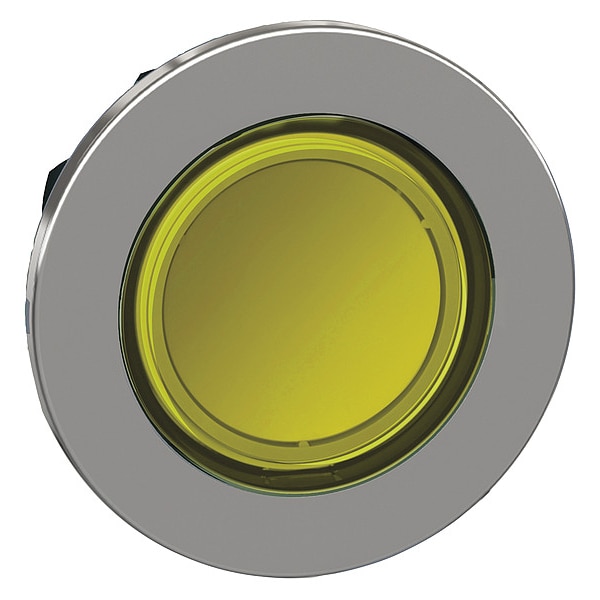

Cabezal de luz piloto, amarillo, LED, 30 mm
| Item | Pilot Light Head |
|---|---|
| Voltage | Not Applicable |
| Color | Yellow |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Bezel | Chromium Plated Metal |
| Lens Material | Plastic |
| Size | 30 mm |
| Lens Type | Smooth |
| Lamp Module Type | Module Not Included |
| Basic Material | Metal |
| NEMA Rating | 12, 13, 4, 4X |
| Body Material | Chrome Plated Metal |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Lamp Voltage | Dependant on Module Used |
| Standards | CE, CSA C22-2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508 |
| Replacement Lamps | Integrated |
| Product Type | Pilot Light Head |
| Compatible with Series | XB4 |
| Compatible Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 13, 4, 12, 4X |
| Compatible Lamp Type | Universal LED Module |
| Light Head Material | Metal |
| Package Quantity | 1 |
