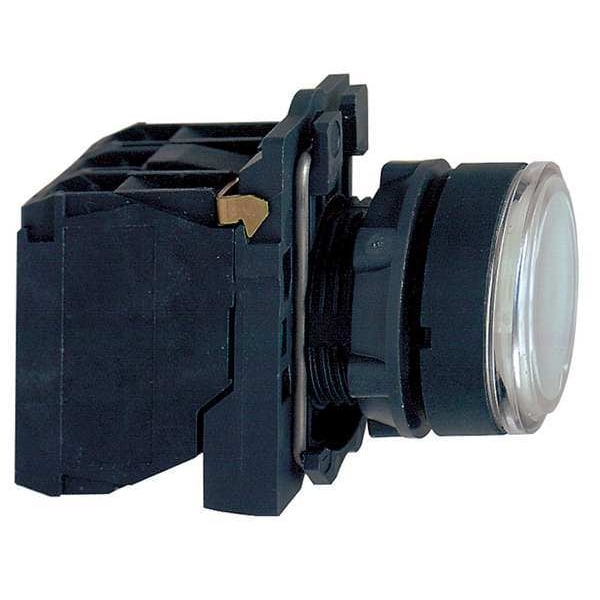

Piloto de luz, LED, 120V, Blanco.
| Item | Illuminated Push Button |
|---|---|
| Voltage | 110 to 120V AC |
| Color | White |
| Action | Momentary |
| Lamp Type | LED |
| Type of Operator | Spring Return |
| Shape | Round |
| Head Material | Plastic |
| Terminal Connection | Screw Clamp |
| Contact Form | 1NO/1NC |
| Lens Material | Plastic |
| Bezel | Plastic |
| Lens Type | Smooth |
| Size | 22 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Body Material | plastic |
| Lamp Voltage | 110 to 120V AC |
| Standards | Bureau Veritas, CSA, DNV, Germanischer Lloyd (GL), LROS, REACH, RoHS, UL Listed, WEEE |
| NEMA Rating | 13, 4, 4X |
| Bezel Material | plastic |
| Legend | Not Applicable |
| Width | 30 mm |
| Series | XB5 |
| Number of Operators | 1 |
| Type | Steady Signal |
| Height | 42 mm |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Average Life | 100,000 hr |
| Length | 57 mm |
| Product Type | Push Button Operators |
| Hazardous Location Specification | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 22 mm |
| Operator Illumination | Illuminated |
| Head Color | White |
| Push Button Style | Flush |
| Overall Height | 1.65 in |
| Number of Indicator Lights | 0 |
| Mushroom Head Diameter | Not Applicable |
| Overall Depth | 2.24 in |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 13, 4X |
| Overall Width | 1.18 in |
| Operator Material | Plastic |
| Legend Color | Not Applicable |
| Maintained Action Release | Not Applicable |
| Lamp Voltage - Maximum | 120 V AC |
| Operator Voltage Rating - Maximum | 600 V AC/DC |
| Package Quantity | 1 |
