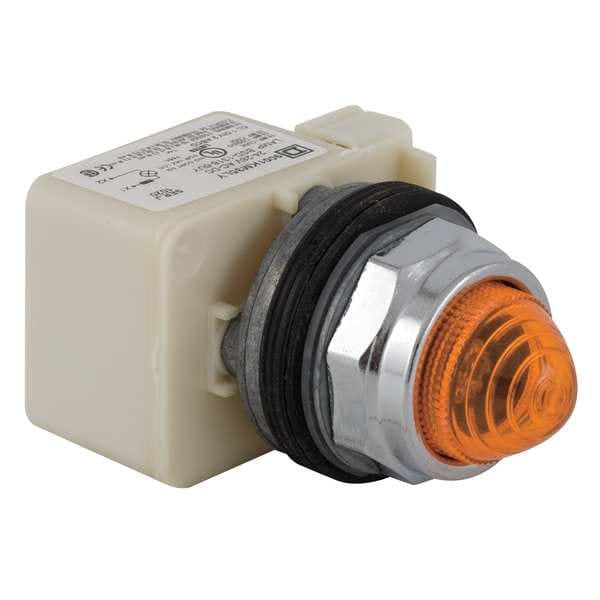

Indicador luminoso piloto, LED, 24V, 30mm, cromo, ámbar
| Item | Pilot Light |
|---|---|
| Voltage | 24V AC/DC |
| Color | Amber |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Lens Material | Polycarbonate |
| Bezel | Metal |
| Size | 30 mm |
| Lens Type | Domed |
| Lamp Module Type | Full Voltage |
| Basic Material | Metal |
| Replacement Lamps | N/A |
| Standards | REACH, RoHS, UL 508, WEEE |
| Body Material | Zinc Die Cast |
| Lamp Voltage | 24V AC/DC |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Includes | Light Module and LED Lamp |
| IP Rating | IP66 |
| Legend | Not Applicable |
| Rated Supply Voltage | 24 to 28 V AC/DC |
| Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Light Source Color | Yellow |
| NEMA Degree Of Protection | NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4; NEMA 6 |
| IP Degree Of Protection | IP66 IEC 60529 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Rated Insulation Voltage | 250 V 2)IEC 60947-1 |
| Light Source | LED |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Product Or Component Type | Pilot light |
| Connections - Terminals | Screw clamp terminals, 1 x 0.22 to 2 x 1.5 mm² IEC 60947-1 |
| Vibration Resistance | 7 gn 2 to 500 Hz)IEC 60068-2-6 |
| Device Presentation | Complete product |
| Light Block Supply | Direct 24 to 28 V AC/DC |
| Operating Position | Any position |
| Bulb Base | BA 9s |
| Overvoltage Category | Class II IEC 61140 |
| Product Certifications | NEMA; UL 508 |
| Conventional Free Air Thermal Current | 10 A |
| Tightening Torque | 7.08 lbf.in (0.8 N.m) IEC 60947-1 |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -13 to 158°F |
| Shape Of Screw Head | Cross slotted |
| Mounting Diameter | 1.18 in |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Overall Depth | 1.65 in |
| Lens Color | Amber |
| Body Finish | Chrome Plated |
| Series | 9001K |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | 28 V AC/DC |
| Overall Height | 2.76 in |
| Includes Push-To-Test | No Push-To-Test Included |
| Overall Width | 2.13 in |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Voltage Rating - Maximum | 28 V AC/DC |
| Includes Lens | Lens Included |
| NEMA Enclosure Rating | 13, 4, 12, 3, 3R, 1, 2, 6 |
| Lamp Color | Amber |
| Hazardous Location Specification | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Includes Lamp Module | Lamp Module Included |
| ATEX Explosive Environment Rating | Not Applicable |
| Package Quantity | 1 |
