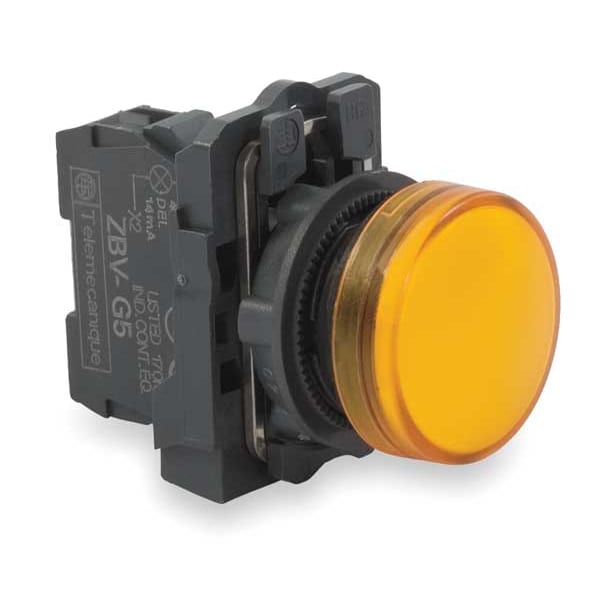

Indicador piloto, LED, color naranja, 22mm, 110-120VCA
| Item | Pilot Light |
|---|---|
| Voltage | 110 to 120V AC |
| Color | Yellow |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Contact Form | (X1-X2)PL |
| Bezel | Plastic |
| Lens Material | Plastic |
| Size | 22 mm |
| Lens Type | Smooth |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Body Material | Plastic |
| Includes | Light Module and Head, Mounting Base |
| NEMA Rating | 13, 4, 4X |
| Standards | CSA, REACH, RoHS, UL Listed, WEEE |
| Average Life | 100,000 hr |
| Length | 54 mm |
| Width | 30 mm |
| Height | 42 mm |
| Type | Steady Signal |
| Mounting Diameter | 0.87 in |
| Ambient Air Temperature For Operation | -40 to 158°F |
| Cap/Operator Or Lens Color | Orange |
| IP Degree Of Protection | IP66 IEC 60529; IP67 IEC 60529; IP69 IEC 60529; IP69K ISO 20653 |
| Overvoltage Category | Class II IEC 60536 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Depth | 2.13 in |
| Vibration Resistance | 5 gn 12 to 500 Hz)IEC 60068-2-6 |
| Rated Supply Voltage | 110 to 120 V AC 50/60 Hz |
| Service Life | 100000 h at rated voltage and 25°C |
| NEMA Degree Of Protection | NEMA 13; NEMA 4X |
| Light Source Color | Orange |
| Signalling Type | Steady |
| Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Current Consumption | 14 mA |
| Shock Resistance | 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27; 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Certifications | CSA; UL Listed |
| Device Presentation | Complete product |
| Resistance To High Pressure Washer | 1015.26 psi (7000000 Pa) 131°F (55°C) 0.1 m |
| Bulb Base | Integral LED |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-2; 8 kV in free air (in insulating parts) IEC 61000-4-2 |
| Bezel Material | Dark Gray plastic |
| Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Product Or Component Type | Pilot light |
| Resistance To Electromagnetic Fields | 9.14 V/m |
| Supply Voltage Limits | 100 to 132 V AC |
| Surge Withstand | 1 kV IEC 61000-4-5 |
| Compatibility Code | XB5 |
| Protective Treatment | TH |
| Connections - Terminals | Screw clamp terminals, Less than or Equal to 2 x 1.5 mm² with cable end IEC 60947-1; Screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end IEC 60947-1 |
| Electromagnetic Emission | Class B IEC 55011 |
| IK Degree Of Protection | IK05 IEC 50102 |
| Head Type | Standard |
| Electromagnetic Compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011 |
| Light Source | LED |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Lens Color | Orange |
| Overall Width | 1.18 in |
| NEMA Enclosure Rating | 13, 4X |
| Includes Lens | Lens Included |
| Voltage Rating - Maximum | 120 V AC |
| Series | XB5 |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 1.65 in |
| Lamp Color | Orange |
| Includes Lamp Module | Lamp Module Included |
| Includes Push-To-Test | No Push-To-Test Included |
| Overall Depth | 2.13 in |
| Package Quantity | 1 |
