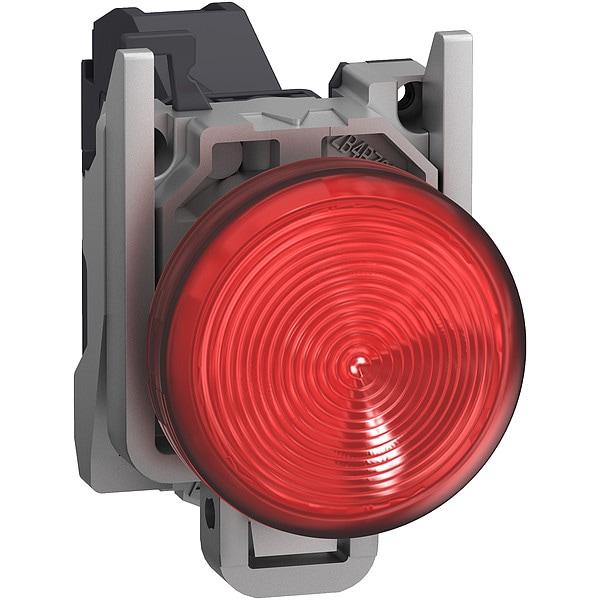

Indicador de encendido, Rojo, 22mm, LED
| Item | Pilot Light |
|---|---|
| Voltage | 24 to 254V AC/DC |
| Color | Red |
| Lamp Type | LED |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Size | 22 mm |
| Lens Type | LED |
| Basic Material | Metal |
| IP Rating | IP65 |
| Lamp Voltage | 24 to 254V AC/V DC |
| Safety Rating | Zone 2 |
| Body Material | Metal |
| Standards | INERIS 04ATEX9003U, REACH, RoHS, WEEE |
| Lamp Voltage - Maximum | 254 V AC/DC |
| Hazardous Location Specification | Not Applicable |
| Overall Width | 1.82 in |
| Lamp Color | Red |
| Series | XB4 |
| Overall Height | 1.18 in |
| Panel Cutout Diameter | 22 mm |
| Includes Lens | Lens Included |
| Lens Color | Red |
| Overall Depth | 2.72 in |
| Voltage Rating - Maximum | 254 V AC/DC |
| ATEX Explosive Environment Rating | Zone 1, Zone 2, Zone 21, Zone 22 |
| Package Quantity | 1 |
