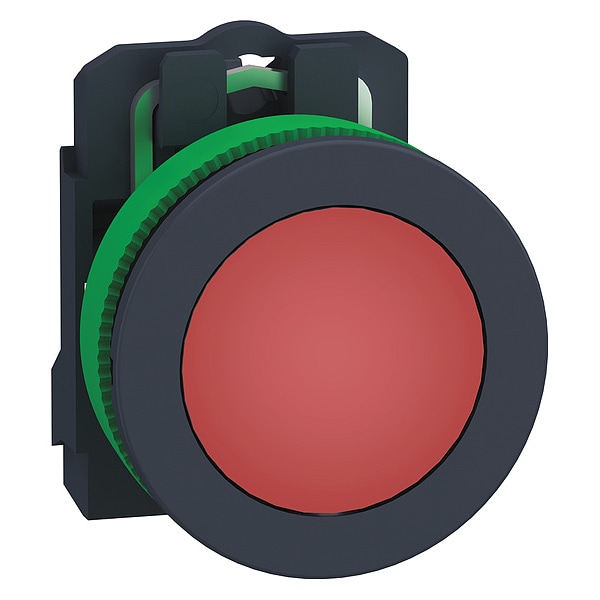

Piloto de luz, rojo, 30mm, LED
| Item | Pilot Light |
|---|---|
| Voltage | 24V AC/DC |
| Color | Red |
| Lamp Type | LED |
| Shape | Round |
| Contact Form | (X1-X2)PL |
| Terminal Connection | Screw Clamp |
| Lens Material | Plastic |
| Bezel | Plastic |
| Lens Type | Smooth |
| Size | 30 mm |
| Lamp Module Type | Full Voltage |
| Basic Material | Plastic |
| IP Rating | IP69K, IP67, IP66, IP69 |
| Lamp Voltage | 24 V AC/DC |
| Length | 55 mm |
| Standards | CSA, REACH, RoHS, UL Listed, WEEE |
| Replacement Lamps | Integrated |
| NEMA Rating | 13, 4X |
| Body Material | Plastic |
| Width | 36.6 mm |
| Height | 42 mm |
| Type | Steady Signal |
| Average Life | 100,000 hr |
| Includes Lamp Module | Lamp Module Included |
| NEMA Enclosure Rating | 13, 4X |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Includes Push-To-Test | No Push-To-Test Included |
| Overall Depth | 2.17 in |
| Series | XB5 |
| Resistance Properties | Dust Resistant, Shock Resistant, Waterproof |
| Voltage Rating - Maximum | 24 V AC/DC |
| Includes Lens | Lens Included |
| Lens Color | Red |
| Overall Width | 1.44 in |
| Lamp Color | Red |
| Overall Height | 1.65 in |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
