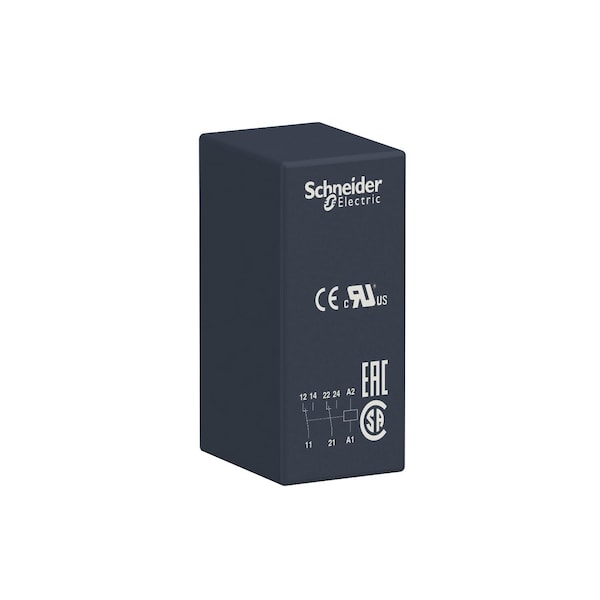

Relé enchufable, 250VCA, 8A, Rsb + Opciones, 24V CC de bobina, 2 contactos normalmente abiertos/cerrados.
| Coil Volts | 24V DC |
|---|---|
| AC Contact Rating - Relay | 8A @ 250V AC |
| DC Contact Rating - Relay | 8 A @ 28 V |
| Contact Form - Relay | 2 C/O |
| Power Consumption - Relay | 0.45 W |
| Contact Material | Silver Alloy |
| Standards | UL 508; CSA C22.2 No 14; EN/IEC 61810-1; CE; EAC |
| Item | Plug-In Relay,250VAC,8A,Rsb + Options |
| Switching Voltage | 12/300 V DC |
| Current Rating | 4 A AC-1/DC-1) NC IEC; 8 A AC-1/DC-1) NO IEC |
| Switching Power | Max 2000 VA/224 W; Min 120 mW 10 mA, 12 V |
| Coil Resistance | 1,440 ohms |
| Operating Time | 20 ms operating || 20 ms reset |
| Series | RSB; interface relay |
| Protection Category | RT I |
| Pin Shape | Flat |
| Operating Temp. Range | -40-85°C DC) |
| Dielectric Strength | 1000 V AC between contacts; 2500 V AC between poles; 5000 V AC between coil and contact |
| Package Quantity | 1 |
