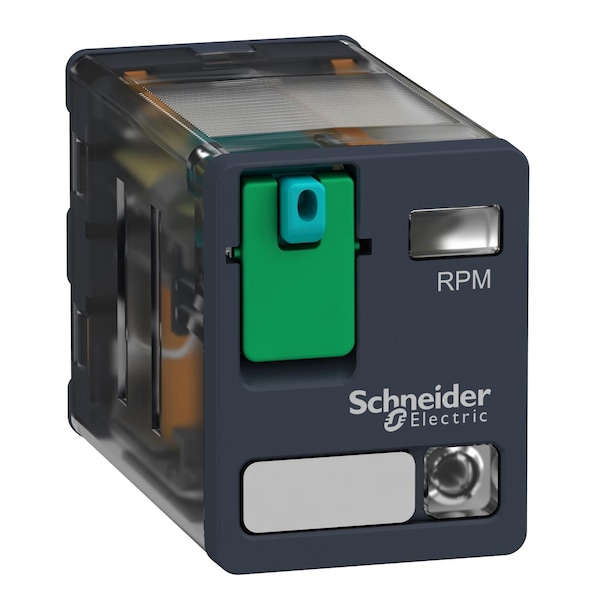

Relé de conexión a corriente, 15 A, 2 contactos normalmente abiertos, con indicador luminoso, 48V de voltaje de bobina de corriente continua, 2 contactos normalmente abiertos.
| Item | Power plug-in relay,15 A,2 CO,with LE |
|---|---|
| Coil Volts | 48V DC |
| AC Contact Rating - Relay | 15A @ 250V AC |
| DC Contact Rating - Relay | 15 A @ 28 V |
| Contact Form - Relay | 2 C/O |
| Power Consumption - Relay | 0.85 W |
| Contact Material | AgNi |
| Features | Lockable Test Button; Status LED |
| Standards | CSA C22.2 No 14; EN/IEC 61810-1; UL 508; EAC |
| Protection Category | RT I |
| Series | RPM; Power |
| Pin Shape | Flat |
| Operating Time | 20 ms at nominal voltage |
| Operating Temp. Range | -40-55°C |
| Current Rating | 15 A 277 V AC) UL; 15 A 28 V DC) UL; 15 A 250 V AC) NO IEC; 15 A 28 V DC) NO IEC; 7.5 A 250 V AC) NC IEC; 7.5 A 28 V DC) NC IEC |
| Switching Power | Max 3750 VA; 420 W; Min 170 mW 10 mA, 17 V |
| Switching Voltage | 250 V IEC |
| Dielectric Strength | 1500 V AC between contacts with micro disconnection; 2000 V AC between coil and contact with reinforced; 2000 V AC between poles with basic |
| Coil Resistance | 2,560 ohms |
| Load Current | 15 A 250 V AC, 15 A 28 V DC |
| Ambient Air Temperature For Storage | -40-85°C |
| Control Type | Lockable test button |
| Device Presentation | complete product |
| Mechanical Durability | 10,000,000 cycle |
| Average Resistance | 2560 Ohm at 20°C +/- 10 % |
| [Ithe] Conventional Enclosed Thermal Current | 15 A -40-55°C |
| Device Short Name | RPM |
| Ambient Air Temperature For Operation | -40-55°C |
| Status Led | with |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV 1.2/50µs |
| [Uc] Control Circuit Voltage | 48 V DC |
| Pollution Degree | 3 |
| Electrical Durability | 100000 cycles resistive |
| Utilisation Coefficient | 0.2 |
| Vibration Resistance | 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating |
| [Ie] Rated Operational Current | 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC |
| Drop-Out Voltage Threshold | >= 0.1 Uc DC |
| Shock Resistance | 15 gnin operation, 30 gnnot operating |
| Minimum Switching Capacity | 170 mW 10 mA, 17 V |
| Operating Position | any position |
| Series Name | Power |
| [Ui] Rated Insulation Voltage | 250 V IEC, 300 V CSA, 300 V UL |
| Test Levels | level A group mounting |
| Maximum Switching Capacity | 3750 VA, 420 W |
| Ip Degree of Protection | IP40 conforming to IEC 60529 |
| Range of Product | Harmony Electromechanical Relays |
| Rated Operational Voltage Limits | 38.4...52.8 V DC |
| Product or Component Type | plug-in relay |
| Operating Rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Package Quantity | 1 |
