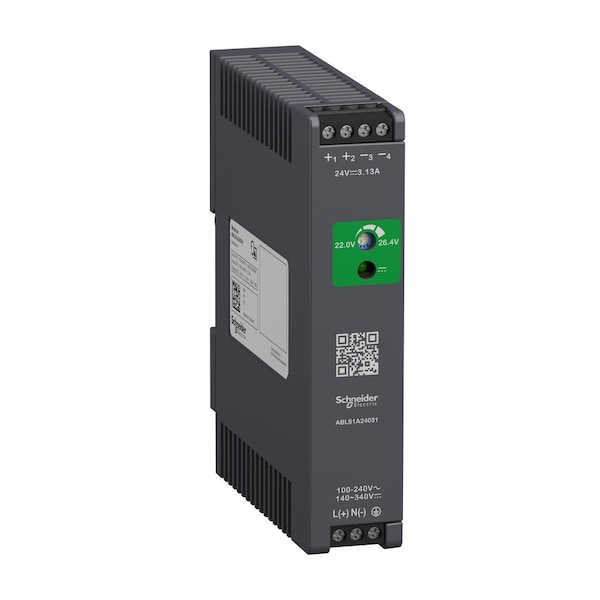

Power Supply, 120/375V DC; 85/264V AC, 24V DC, 75W, 3.13A, DIN Rail
| Item | Power Supply |
|---|---|
| Input Voltage | 120/375V DC; 85/264V AC |
| Output Voltage | 24V DC |
| Power Rating | 75 W |
| Output Amps | 3.13 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 4.87 in |
| Width | 1.06 in |
| Depth | 4.02 in |
| Hz | 50/60 Hz |
| Series | ABL |
| IP Rating | IP20 |
| Hold Up Time | Greater Than 20 msec @ 115 V AC, Greater Than 40 msec @ 230 V AC |
| Load Regulation | Less Than 0.5% |
| Status Indicator | Green LED |
| Standards | CB Scheme, CE, CSA C22.2 No. 61010-1, CSA C22.2 No. 61010-2-201, CSA C22.2 No. 62368-1, cUL, EN 61010-2-201, EN/IEC 61010-1, EN/IEC 61204-3, EN/IEC 62368-1, IEC 61000-3-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4, IEC 62368-1, KC, NEC: Class 2, RCM, UL 61010-1, UL 61010-2-201, UL 62368-1 |
| Connection | Screw |
| Protection | Overload and Short-Circuits Automatic Reset, Over Temperature Manual Reset , Overvoltage Manual Reset |
| Operating Temp. Range | -10 to 50 deg C |
| Line Regulation | Less Than 1% |
| Features | Approved For Branch Circuits Up To 16 A (IEC) and 20 A (UL) Without Additional Protection Devices |
| Ripple Volts Regulation | Less Than 120mV |
| Maximum Efficiency @ 230V AC | 88% |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | 14 deg F |
| Output Power - Rated | 75 W |
| Wire Connection Type | Terminals |
| Manufacturer Warranty | 18 mo |
| Current - Output | 3.13 A |
| Input Frequency - Nominal | 50/60 Hz |
| Wire Size - Minimum | 20 AWG |
| Housing Material | Plastic |
| Mean Time Between Failures (MTBF) | 700,000 hr |
| Wire Size - Maximum | 14 AWG |
| Current - Inrush | 80 A |
| Package Quantity | 1 |
