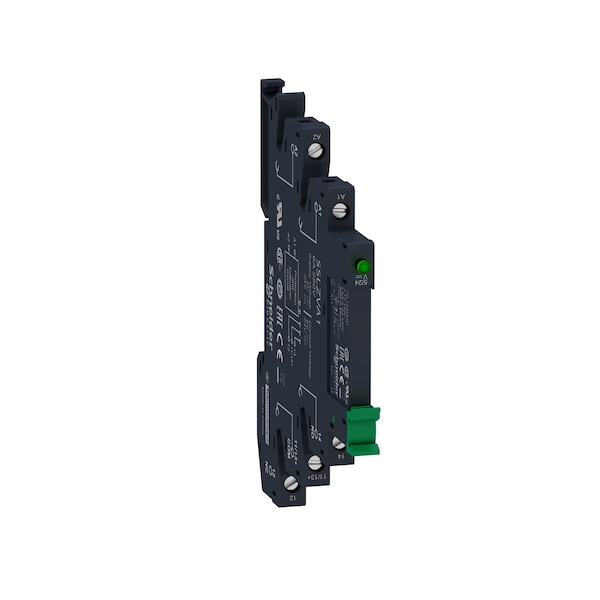

Relevador preensamblado, relevadores de estado sólido Harmony, 2A, conmutación de voltaje cero, sockets de tornillo, entrada de 16 a 30V DC, salida de 24 a 250V AC.
| Item | SSR, 2A@24-280VAC zero, 15-30VDC, Screw |
|---|---|
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Phase | 1 phase |
| Mounting Support | socket |
| Load Current | 0.07 to 2 A |
| Maximum Voltage Drop | <1.1 V on-state |
| Capacitance Unbalance | 1.5 pF (input/output) |
| Surge Current | 120 A 16.6 ms, 115 A 20 ms |
| Input Impedance | 3.43 kOhm |
| Range of Product | Harmony Solid State Relays |
| Flame Retardance | V0 conforming to UL 94 |
| Output Switching Mode | switching |
| Width | 6.2 mm |
| Device Short Name | SSL |
| Depth | 79.5 mm |
| Minimum Switching Voltage | 16 V DC turn-on |
| Height | 96.5 mm |
| Dielectric Strength | 2500 V for input/output |
| Solid State Output Type | zero voltage switching, SCR output |
| Ambient Air Temperature For Storage | -20-85°C |
| Ambient Air Temperature For Operation | -20-70°C |
| Pollution Degree | 2 |
| Maximum I²T For Fusing | 285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz |
| Product or Component Type | solid state relay up to 10 A |
| Dv/Dt | 500 V/µs |
| [Uc] Control Circuit Voltage | 16...30 V DC |
| Tightening Torque | < 0.5 N-m, 4.4 in-lb |
| Line Rated Current | 2 A |
| Maximum Switching Voltage | 5 V DC turn-off |
| Overvoltage Category | III |
| Connections - Terminals | flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14), solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) |
| Marking | CE, CSA, EAC, cURus |
| Response Time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Ip Degree of Protection | IP20 |
| Absolute Maximum Voltage | 600 V |
| Maximum Leakage Current | 4 mA off-state |
| Package Quantity | 1 |
