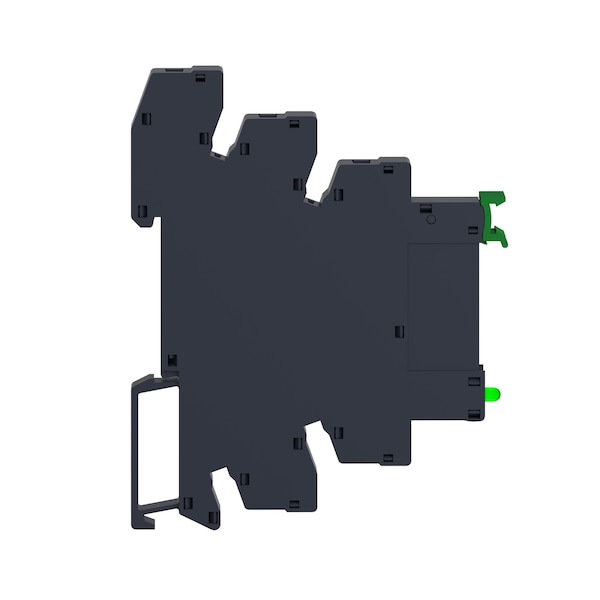

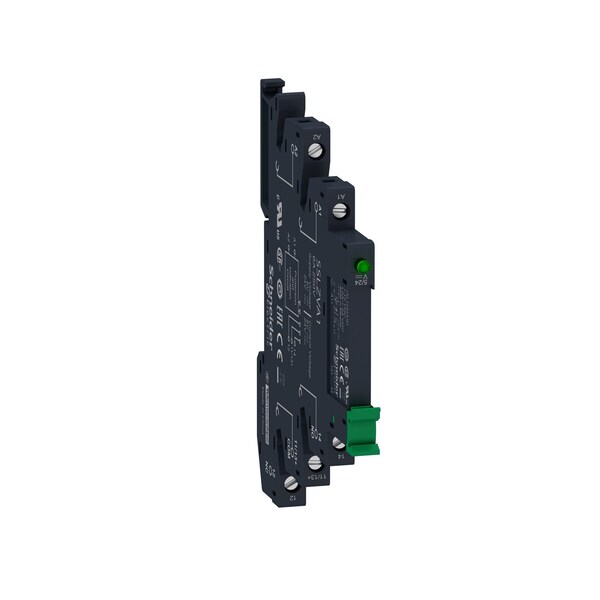

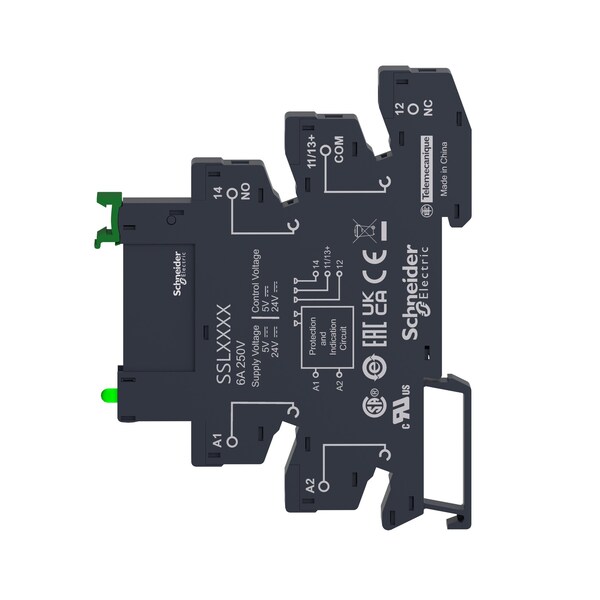

Relevador pre ensamblado, relevadores de estado sólido Harmony, 3.5A, conmutación de corriente continua (DC), con sockets de tornillo, entrada de 4 a 12V DC, salida de 1 a 24V DC.
| Item | SSR, 3.5A@1-24VDC, 3-12VDC, Screw |
|---|---|
| Phase | 1 phase |
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Capacitance Unbalance | 1.5 pF (input/output) |
| Dielectric Strength | 2500 V for input/output |
| Input Impedance | 500 Ohm |
| Pollution Degree | 2 |
| Range of Product | Harmony Solid State Relays |
| Line Rated Current | 3.5 A |
| Tightening Torque | < 0.5 N-m, 4.4 in-lb |
| Device Short Name | SSL |
| Solid State Output Type | Mosfet output |
| Maximum Switching Voltage | 1 V DC turn-off |
| Ambient Air Temperature For Storage | -20-85°C |
| Mounting Support | socket |
| Height | 96.5 mm |
| Flame Retardance | V0 conforming to UL 94 |
| Output Voltage | 1...24 V DC |
| Maximum Voltage Drop | <0.5 V on-state |
| Load Current | 0.001 to 3.5 A |
| Connections - Terminals | flexible cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14), solid cable with cable end, 0.2...2.5 mm² AWG 24...AWG 14) |
| Output Switching Mode | DC switching |
| Minimum Switching Voltage | 4 V DC turn-on |
| Absolute Maximum Voltage | 30 V |
| Width | 6.2 mm |
| Depth | 79.5 mm |
| Response Time | 0.12 msec, 0.1 msec |
| Surge Current | 9 A 10 ms |
| Overvoltage Category | III |
| Maximum Leakage Current | 0.001 mA off-state |
| Marking | CE, CSA, EAC, cURus |
| Product or Component Type | solid state relay up to 10 A |
| Ip Degree of Protection | IP20 |
| Ambient Air Temperature For Operation | -20-70°C |
| Package Quantity | 1 |
