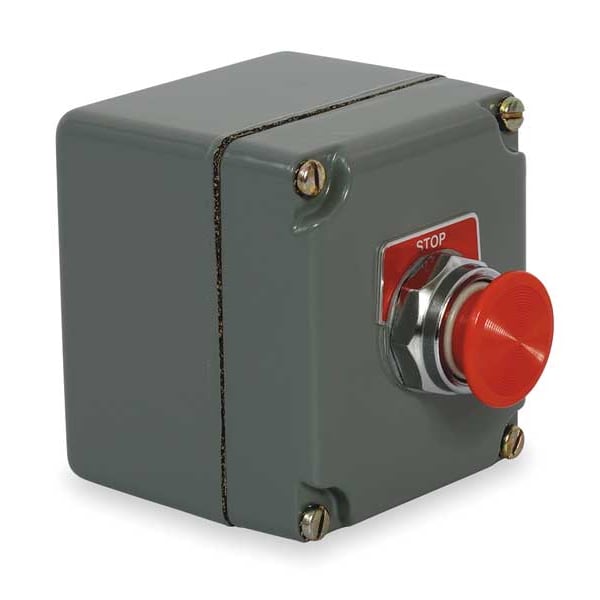

Estación de control de botón de empuje, 1 contacto normalmente abierto/1 contacto normalmente cerrado, cabeza en forma de seta.
| Item | Control Station |
|---|---|
| Contact Form | 1NO/1NC |
| Number of Gangs | 1 |
| Legend | Stop |
| Type of Operator | Push Button with Mushroom Head |
| Number of Pilot Lights | 0 |
| Number of Operators | 1 |
| NEMA Rating | 1, 13, 3, 4 |
| Series | 9001K |
| Hub Style | Dead-End |
| Size | 30 mm |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| Standards | CE, CSA, UL Listed |
| For Use With | indoor/outdoor |
| Action | Momentary |
| Mechanical Interlock | No |
| Hub | 3/4 in NPT |
| Depth | 4 in |
| Height | 3.53 in |
| Mounting | Wall |
| NEMA Contact Rating Designation | A600, Q600 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Width | 3.58 in |
| Enclosure Color | Gray |
| Enclosure Material | Zinc |
| Operator Color | Red |
| IP Rating | IP66 |
| Number of Speeds | 1 |
| Mounting Style | Surface |
| Terminal Connection | screw-clamp terminals |
| Product Or Component Type | Complete control station |
| Provided Equipment | Contact block; Legend plate |
| Control Station Composition | 1 push-button 1 NO + 1 NC STOP |
| NEMA Degree Of Protection | NEMA 3/4/13 |
| Enclosure/Cubicle Description | Surface mounting |
| Contact Block Name | KA1 |
| Rated Operational Current AC | 10 A |
| Hazardous Location Specification | Class II, Div 2, Group G, Class III, Div 1 and 2 |
| Panel Cutout Diameter | 30 mm |
| Operating Temperature - Maximum | 158 deg F |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Operating Temperature - Minimum | -13 deg F |
| Overall Depth | 3.53 in |
| Selector Switch Number of Positions | Not Applicable |
| Pilot Light Color | Not Applicable |
| Operator Configuration | Buttons |
| Mounting Orientation | Not Applicable |
| Overall Height | 4 in |
| Maintained Action Release | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Product Type | Control Station |
| NEMA Enclosure Rating | 13, 3, 4 |
| Hub Size - Maximum | 3/4 in |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Overall Width | 3.62 in |
| DC Contact Rating | 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V |
| Package Quantity | 1 |
