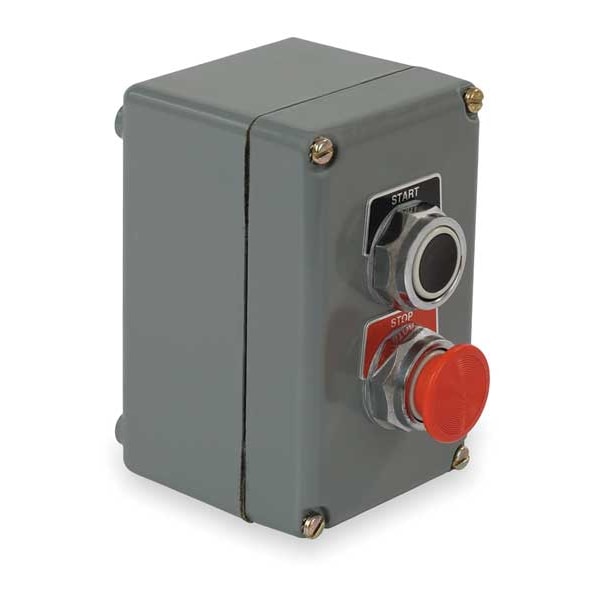

Estación de control de botón de presión, 2NA/2NC, cabeza de seta.
| Item | Control Station |
|---|---|
| Contact Form | 2NO/2NC |
| Number of Gangs | 1 |
| Legend | Stop, Start |
| Type of Operator | Push Button with Mushroom Head |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1, 13, 3, 4 |
| Size | 30 mm |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| Standards | CE, CSA, UL Listed |
| Action | Momentary |
| Hub | 3/4 in NPT |
| Mechanical Interlock | No |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Height | 3.53 in |
| NEMA Contact Rating Designation | A600, Q600 |
| Depth | 5-3/4 in |
| Width | 3.58 in |
| Enclosure Material | Zinc |
| Mounting | Wall |
| Enclosure Color | Gray |
| Operator Configuration | Push Buttons |
| Overall Depth | 5-3/4 in |
| Maintained Action Release | Not Applicable |
| Product Type | Control Station |
| Overall Height | 3.53 in |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Panel Cutout Diameter | 30 mm |
| DC Contact Rating | 2.5 A @ 24 V |
| Pilot Light Color | Not Applicable |
| AC Contact Rating | 10 A @ 300 V |
| NEMA Enclosure Rating | 1, 13, 3, 4 |
| Overall Width | 3.58 in |
| Package Quantity | 1 |
