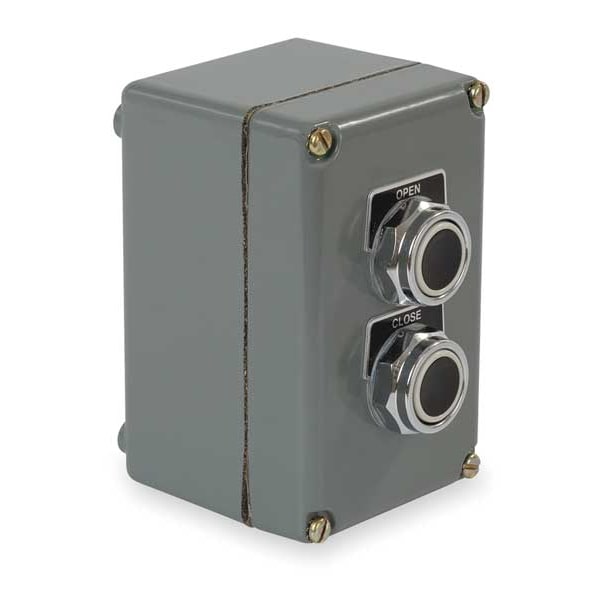

Estación de control de botón de empuje, 2NO / 2NC, Abrir / Cerrar
| Item | Control Station |
|---|---|
| Contact Form | 2NO/2NC |
| Number of Gangs | 1 |
| Legend | Close, Open |
| Type of Operator | Push Button/Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1, 13, 3, 4 |
| Hub Style | Dead-End |
| Series | 9001K |
| Size | 30 mm |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| Standards | UL Listed |
| For Use With | indoor/outdoor |
| Action | Momentary |
| Mechanical Interlock | No |
| Hub | 3/4 in NPT |
| Enclosure Material | Zinc |
| Height | 3.53 in |
| Enclosure Color | Gray |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| NEMA Contact Rating Designation | A600, Q600 |
| Width | 3.58 in |
| Mounting | Wall |
| Depth | 5-3/4 in |
| IP Rating | IP66 |
| Operator Color | Black |
| Number of Speeds | 1 |
| Voltage | 300 V |
| Terminal Connection | screw clamp terminal |
| Application | for hoisting and mechanical handling applications |
| Ambient Air Temperature For Operation | -13 to 140°F |
| Enclosure/Cubicle Description | Wall-mounted enclosure 2 cut-outs 30 mm |
| Product Or Component Type | control station |
| Provided Equipment | Label plate OPEN-CLOSE |
| NEMA Degree Of Protection | NEMA 1, NEMA 3, NEMA 4 ; NEMA 13 |
| Ambient Air Temperature For Storage | -40 to 158°F |
| Level Or Class | Class III; Class II Division 2 Group G |
| Connector Type | Screw clamp connector |
| Environmental Characteristic | Resistant against immersion in water; Dust and oil resistant |
| Mechanical Interlocking | Without mechanical interlock |
| Contact Block Name | KA1 |
| Rated Operational Current AC | 10 A |
| Connections - Terminals | Direct connection AWG 2) solid stranded; Direct connection AWG 12) solid stranded; Direct connection AWG 24) solid stranded |
| Product Certifications | UL Listed |
| Control Station Composition | 2 push-buttons 2 NO + 2 NC |
| Maintained Action Release | Not Applicable |
| Overall Height | 5-3/4 in |
| Manufacturer Warranty Length | 18 mo |
| Operator Configuration | Buttons |
| Hub Size - Maximum | 3/4 in |
| DC Contact Rating | 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V |
| Selector Switch Number of Positions | Not Applicable |
| Overall Depth | 3.53 in |
| Operating Temperature - Minimum | -13 deg F |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 1, 13, 3, 4 |
| Operating Temperature - Maximum | 140 deg F |
| Overall Width | 3.62 in |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Hazardous Location Specification | Class II, Div 2, Group G, Class III, Div 1 and 2 |
| Product Type | Control Station |
| Mounting Orientation | Not Applicable |
| Pilot Light Color | Not Applicable |
| Package Quantity | 1 |
