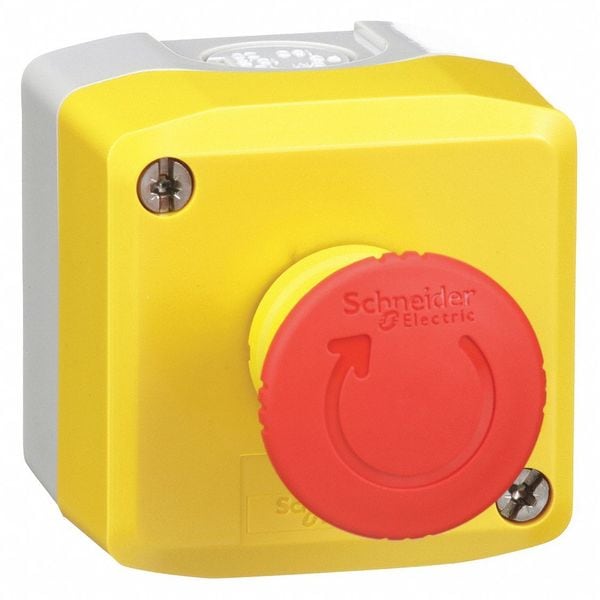

Estación de Control de Botón Pulsador, 1NC, Cabeza de Champiñón
| Item | Control Station |
|---|---|
| Contact Form | 1NC |
| Basic Material | polycarbonate |
| Legend | No Legend |
| Type of Operator | 40mm Mushroom Head |
| Number of Pilot Lights | 0 |
| Number of Operators | 1 |
| NEMA Rating | 1, 12, 13, 2, 3, 4, 4X |
| Series | Harmony |
| Hub Style | Feed-Thru |
| Size | 22 mm |
| Contact Rating | 10A @ 600V AC, 2.5A @ 24V DC |
| Standards | CSA, UL Listed |
| Housing Color | light grey RAL 7035 |
| Action | Maintained |
| Head Material | Plastic |
| Mechanical Interlock | No |
| Hub | ISO M20 |
| NEMA Contact Rating Designation | A600, Q600 |
| Mounting | Wall |
| IP Rating | IP66, IP67, IP69, IP69K |
| Depth | 3.6 in |
| Enclosure Color | Light Gray/Yellow |
| Height | 2.67 in |
| Width | 2.67 in |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Operator Color | Red |
| Enclosure Material | Plastic |
| Voltage | 600 V |
| Number of Speeds | 1 |
| Terminal Connection | screw clamp terminal |
| Cable Entry | 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm |
| Mounting Style | Surface |
| Application | emergency stop function || emergency switching off function |
| Operator Configuration | Push Buttons |
| Selector Switch Number of Positions | Not Applicable |
| Mounting Orientation | Not Applicable |
| Hub Size - Maximum | 9/16 in |
| Overall Width | 2.68 in |
| Overall Height | 3.58 in |
| Panel Cutout Diameter | 40 mm |
| NEMA Enclosure Rating | 13, 4X |
| Overall Depth | 2.68 in |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Maintained Action Release | Twist |
| Operating Temperature - Maximum | 158 deg F |
| Hazardous Location Specification | Not Rated |
| AC Contact Rating | 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V |
| Operating Temperature - Minimum | -40 deg F |
| Product Type | Control Station |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| Pilot Light Color | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Package Quantity | 1 |
