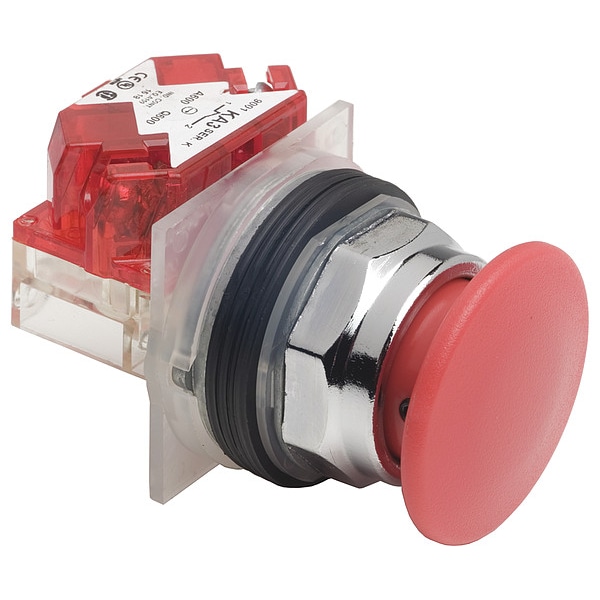

Botón de presión, 30 mm, 1 Normalmente Abierto / 1 Normalmente Cerrado, 1 NC, 1 NO, Rojo
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Legend/Background Color | No Legend |
| Head Material | Metal |
| NEMA Rating | 13, 4 |
| Lamp Type | Not Applicable |
| Type of Operator | Push-Pull |
| Contact Form | 1NC |
| Color | Red |
| Bezel | Metal |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Chrome |
| Series | 9001K |
| IP Rating | IP20, IP65 |
| AC Contact Rating | 1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V |
| DC Contact Rating | 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V |
| Terminal Connection | Screw Clamp |
| Lamp Module Type | Not Applicable |
| Standards | REACH, RoHS, WEEE |
| Features | Mercury Free |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Head Color | Red |
| Lamp Voltage - Maximum | Not Applicable |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Legend Color | Not Applicable |
| Maintained Action Release | Push, Pull |
| Operating Temperature - Minimum | -22 deg F |
| Operator Material | Metal |
| Operator Illumination | Non-Illuminated |
| Operating Temperature - Maximum | 140 deg F |
| Mushroom Head Diameter | 41 mm |
| Legend Background Color | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Manufacturer Warranty Length | 18 mo |
| Operator Voltage Rating - Maximum | 600 V AC |
| Number of Indicator Lights | 0 |
| Package Quantity | 1 |
