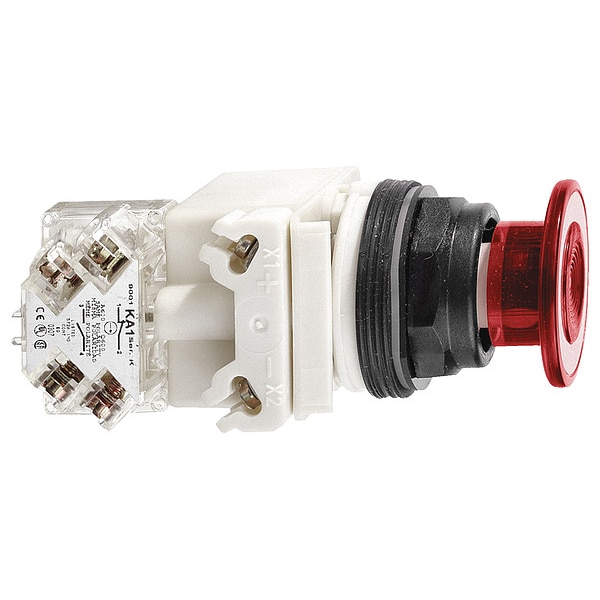

Botón de empuje, 30 mm, No aplicable, Rojo.
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| Legend/Background Color | No Legend |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Lamp Type | LED |
| Type of Operator | 41mm Mushroom Head |
| Contact Form | Not Applicable |
| Color | Red |
| Bezel | Plastic |
| Legend | Pull to Start to Stop, Push |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Plastic |
| Voltage | 24V AC/DC |
| Legend Markings | No Legend |
| Series | 9001SK |
| Terminal Connection | Screw Clamp |
| Lamp Module Type | Full Voltage |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE |
| Lamp Module Voltage | 24V AC/DC |
| NEMA Contact Rating Designation | A600, Q600 |
| Basic Material | Plastic |
| IP Rating | IP66 |
| DC Contact Rating | Not Applicable |
| Contact Type | Not Applicable |
| AC Contact Rating | Not Applicable |
| Product Type | Push Button Operators |
| Product Or Component Type | head for illuminated push-button |
| Ambient Air Temperature For Operation | -25-70°C |
| Operator Profile | red mushroom Ø 41 mm, unmarked |
| Light Block Supply | direct |
| Bulb Base | BA 9s |
| Protective Treatment | TC |
| Mounting Diameter | 30 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Product Certifications | UL 508 || NEMA |
| Shape Of Signaling Unit Head | round |
| Operating Position | any position |
| Operator Position Information | 2 positions |
| Electrical Shock Protection Class | class II IEC 61140 |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Contacts Type And Composition | without contact block |
| Mechanical Durability | 5,000,000 cycle |
| Device Short Name | 9001SK |
| Light Source | LED, incandescent |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 2.13 in |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Legend Background Color | White |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2 |
| Operator Material | Plastic |
| Maintained Action Release | Push, Pull |
| Lamp Voltage - Maximum | 28 V AC/DC |
| Mechanical Operating Durability | 5.00 x 10^6 |
| Number of Indicator Lights | 0 |
| Push Button Style | Mushroom Head |
| Legend Color | Black |
| Operator Voltage Rating - Maximum | 600 V AC |
| Head Color | Red |
| Operating Temperature - Maximum | 158 deg F |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Operator Illumination | Illuminated |
| Mushroom Head Diameter | 41 mm |
| Overall Depth | 2.8 in |
| Panel Cutout Diameter | 30 mm |
| Manufacturer Warranty Length | 18 mo |
| Overall Height | 1.65 in |
| Package Quantity | 1 |
