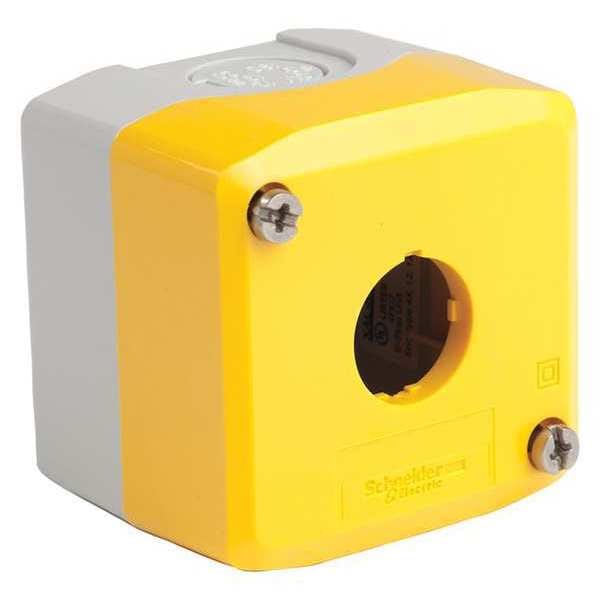

Caja de botón de presión 600Vca 10A Xalk Sp
| Item | Push Button Enclosure |
|---|---|
| Number of Columns | 1 |
| Hole Size | 22 mm |
| Material | Polycarbonate |
| Conduit Size | No Conduit Entrance Holes Provided |
| Dimensions | 11.81 in H x 11.81 in W x 15-3/4 in D |
| NEMA Rating | 13, 4X |
| Cable Entry | 1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm |
| Height | 11.81 in |
| Width | 11.81 in |
| Depth | 15-3/4 in |
| Color | Yellow |
| Mounting Style | Front Mounting, Rear Mounting |
| Standards | RoHS |
| Type | Control Station |
| Overvoltage Category | class II IEC 60536 |
| Device Short Name | XALK |
| Ik Degree Of Protection | IK03 EN 50102 |
| Number Of Cut-Out | 1 cut-out |
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Number Of Vertical Rows | 1 |
| Ambient Air Temperature For Operation | -40-70°C |
| Product Certifications | UL || CSA |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Group Of Product | UL-CSA yellow |
| Main Group | 1 cut-out |
| Number Of Horizontal Rows | 1 |
| Colour Of Base Of Enclosure | light grey RAL 7035 |
| Mounting Of Block | front mounting || rear mounting |
| Product Or Component Type | control station, empty station |
| Electrical Composition Code | SF1 || SR1 || MF1 || MR1 |
| Control Station Application | emergency switching off function || emergency stop function |
| Colour Of Cover | yellow RAL 1021 |
| Protective Treatment | TH |
| Ambient Air Temperature For Storage | -40-70°C |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 || IP69 || IP69K |
| Assembly Style | For customer assembly |
| Enclosure Base Cover | Light Gray RAL 7035 |
| Overall Depth | 2-1/16 in |
| NEMA Enclosure Rating | 13, 4X |
| Compatible Conduit Size - Maximum | 14 mm |
| Panel Cutout Diameter | 22 mm |
| Compatible with Series | XB5 |
| Overall Height | 2-11/16 in |
| Overall Width | 2-11/16 in |
| Package Quantity | 1 |
