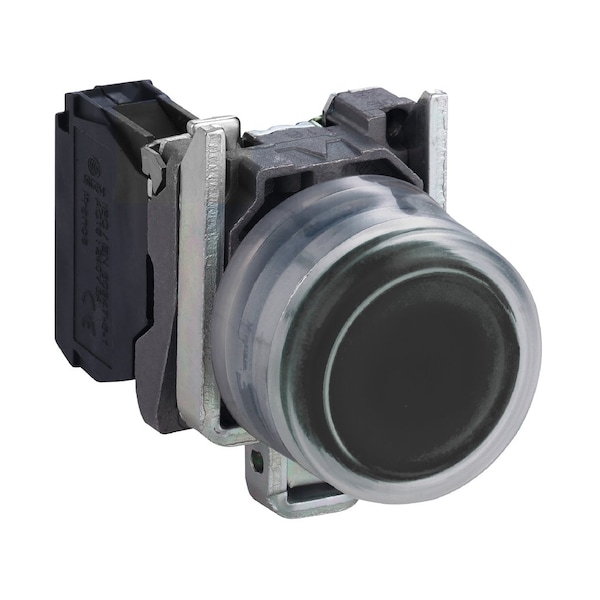

Botón pulsador, Harmony XB4, metal, sobresaliente, negro, 22mm, retorno por resorte, con protector, sin marcar, 1NA.
| Item | Push button,metal,projecting,black,0 |
|---|---|
| Height | 47 mm |
| Width | 30 mm |
| Depth | 61 mm |
| Standards | JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1 |
| Bezel Material | chromium plated metal |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C |
| Operator Additional Information | clear boot |
| Mechanical Durability | 10,000,000 cycle |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Operating Force | 3.8 N NO changing electrical state |
| Contacts Type And Composition | 1 NO |
| Contacts Usage | standard contacts |
| Positive Opening | without |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Product Certifications | UL Listed || LROS (Lloyds register of shipping) || CSA || BV || GL || DNV |
| Ambient Air Temperature For Operation | -40-70°C |
| Device Presentation | product |
| Shape Of Signaling Unit Head | round |
| Overvoltage Category | class I IEC 60536 |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Head Type | Standard |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4 |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Terminals Description Iso N°1 | NO |
| Operating Travel | 2.6 mm NO changing electrical state) || 4.3 mm total travel) |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mm² without cable end EN/IEC 60947-1 |
| Product Or Component Type | push-button |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 |
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| Ambient Air Temperature For Storage | -40-70°C |
| Contact Operation | slow-break |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Product Compatibility | not compatible with legend holder |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| Shape Of Screw Head | cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm |
| Device Short Name | XB4 |
| Fixing Collar Material | zamak |
| Mounting Diameter | 22 mm |
| Type Of Operator | spring return |
| Operator Profile | black projecting, unmarked |
| Protective Treatment | TH |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Range of Product | Harmony XB4 |
| Package Quantity | 1 |
