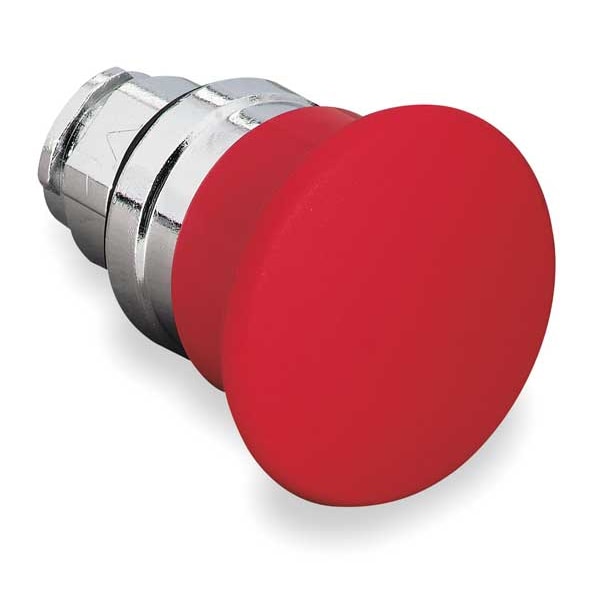

Operador de botón pulsador, 22 mm, color rojo.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | 40mm Mushroom Head |
| Lamp Type | Not Applicable |
| Color | Red |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Metal |
| IP Rating | IP66 |
| Standards | Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508 |
| Accessory Group | B |
| Basic Material | Metal |
| Terminal Connection | Not Applicable |
| Features | Visually Distinct at a Distance, Snap-Fit Assembly, High Brightness |
| Series | XB4 |
| Lamp Module Type | Not Applicable |
| Ip Degree Of Protection | IP66 IEC 60529 || IP69 || IP69K |
| Device Short Name | ZB4 |
| Shape Of Signaling Unit Head | round |
| Mechanical Durability | 5,000,000 cycle |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Device Presentation | basic element |
| Electrical Composition Code | C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting |
| Product Or Component Type | head for non-illuminated push-button |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70°C |
| Cad Overall Height | 40 mm |
| Mounting Diameter | 22 mm |
| Overvoltage Category | class I IEC 60536 |
| Protective Treatment | TH |
| Head Type | Standard |
| Cad Overall Depth | 52 mm |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Ambient Air Temperature For Storage | -40-70°C |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Product Certifications | LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV || CSA |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Cad Overall Width | 40 mm |
| Products By Industry | Fabricated Metals |
| Operating Temperature - Minimum | -40 deg F |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Operator Illumination | Non-Illuminated |
| Manufacturer Warranty Length | 18 mo |
| Operating Temperature - Maximum | 158 deg F |
| Legend Color | Not Applicable |
| Push Button Style | Mushroom Head |
| Number of Indicator Lights | 0 |
| Overall Depth | 2.05 in |
| Panel Cutout Diameter | 22 mm |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Hazardous Location Specification | Not Rated |
| Overall Width | 1.57 in |
| Operator Material | Metal |
| Legend Background Color | Not Applicable |
| Mushroom Head Diameter | 40 mm |
| Maintained Action Release | Not Applicable |
| Lamp Voltage - Maximum | Not Applicable |
| Head Color | Red |
| Overall Height | 1.57 in |
| Package Quantity | 1 |
