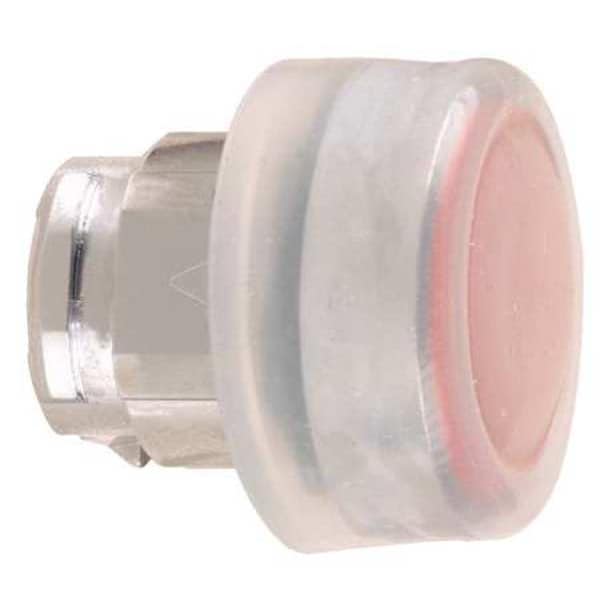

Operador de botón pulsador, 22 mm, rojo
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 1, 13, 2, 3, 4, 4X |
| Type of Operator | Booted Button |
| Lamp Type | Not Applicable |
| Color | Red |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Flush Push Button |
| Bezel Material | Metal |
| IP Rating | IP66 |
| Standards | Bureau Veritas, Class I IEC 60536, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508 |
| Basic Material | Metal |
| Terminal Connection | Not Applicable |
| Features | Emergency Stop, Emergency Off, Visually Distinct at a Distance |
| Series | XB4 |
| Lamp Module Type | Not Applicable |
| Product Compatibility | not compatible with legend holder |
| Mounting Diameter | 22 mm |
| Ambient Air Temperature For Storage | -40-70°C |
| Cad Overall Depth | 37 mm |
| Cad Overall Height | 30 mm |
| Product Certifications | UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV |
| Device Short Name | ZB4 |
| Cad Overall Width | 30 mm |
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Shape Of Signaling Unit Head | round |
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70°C |
| Mechanical Durability | 10,000,000 cycle |
| Overvoltage Category | class I IEC 60536 |
| Nema Degree Of Protection | NEMA 13 || NEMA 4X |
| Operator Additional Information | boot |
| Operator Profile | red flush, unmarked |
| Head Type | Standard |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP66 IEC 60529 || IP67 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Device Presentation | basic element |
| Product Or Component Type | head for non-illuminated push-button |
| Legend Color | Not Applicable |
| Overall Width | 1.18 in |
| Mushroom Head Diameter | Not Applicable |
| Overall Depth | 1.46 in |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Lamp Voltage - Maximum | Not Applicable |
| Number of Indicator Lights | 0 |
| Legend Background Color | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 2 |
| Operating Temperature - Maximum | 158 deg F |
| Manufacturer Warranty Length | 18 mo |
| Hazardous Location Specification | Not Rated |
| Maintained Action Release | Not Applicable |
| Operator Material | Metal |
| Operator Illumination | Non-Illuminated |
| Push Button Style | Flush |
| Overall Height | 1.18 in |
| Operating Temperature - Minimum | -40 deg F |
| Panel Cutout Diameter | 22 mm |
| Head Color | Red |
| Package Quantity | 1 |
