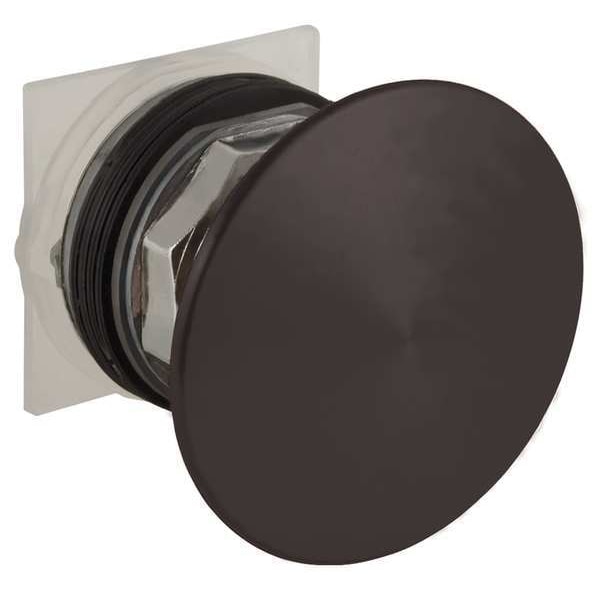

Operador de botón de presión, 30 mm, negro.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Type of Operator | 60mm Mushroom Head |
| Lamp Type | Not Applicable |
| Color | Black |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Metal |
| Accessory Group | Type K and SK Accessories |
| Basic Material | Metal |
| Standards | Class II IEC 61140, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C4520, JIS C852, REACH Free of SVHC, RoHS, UL 508 |
| IP Rating | IP66 |
| Terminal Connection | Not Applicable |
| Lamp Module Type | Not Applicable |
| Series | 9001K |
| Nema Degree Of Protection | NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6 |
| Device Presentation | basic element |
| Operating Position | any position |
| Product Compatibility | contact block 9001KA.. |
| Overvoltage Category | class II IEC 61140 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Cad Overall Width | 60 mm |
| Product Certifications | NEMA || UL 508 |
| Cap/Operator Or Lens Colour | black |
| Operator Additional Information | screw-on metal with set screw |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Cad Overall Depth | 70 mm |
| Ambient Air Temperature For Operation | -25-70°C |
| Ambient Air Temperature For Storage | -40-70°C |
| Protective Treatment | TC |
| Mechanical Durability | 5,000,000 cycle |
| Shape Of Signaling Unit Head | round |
| Product Or Component Type | head for push-button |
| Operator Profile | black mushroom Ø 60 mm, unmarked, mushroom Ø 60 mm |
| Contacts Type And Composition | without contact block |
| Cad Overall Height | 60 mm |
| Mounting Diameter | 30 mm |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Device Short Name | 9001K |
| Overall Height | 2.36 in |
| Operating Temperature - Minimum | -13 deg F |
| Operator Illumination | Non-Illuminated |
| Hazardous Location Specification | Not Rated |
| Legend Color | Not Applicable |
| Mushroom Head Diameter | 60 mm |
| Operator Material | Metal |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 30 mm |
| Lamp Voltage - Maximum | Not Applicable |
| Overall Width | 2.36 in |
| Overall Depth | 2.76 in |
| Maintained Action Release | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Push Button Style | Mushroom Head |
| Legend Background Color | Not Applicable |
| Number of Indicator Lights | 0 |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Head Color | Black |
| Package Quantity | 1 |
