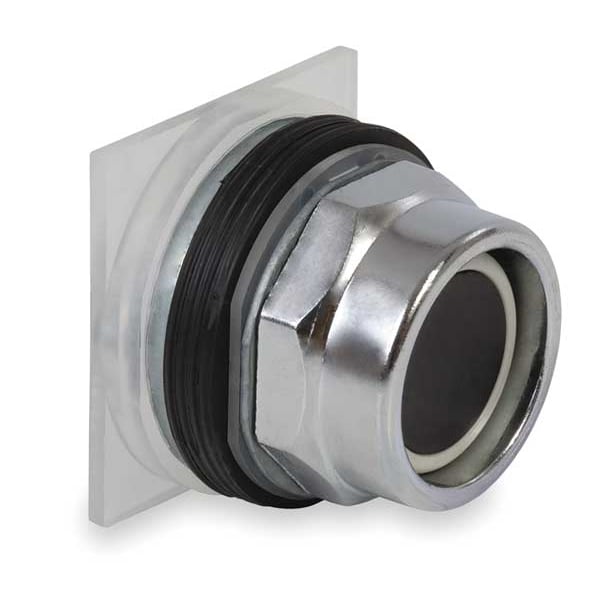

Operador de botón de empuje, 30 mm, negro
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Metal |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 6 |
| Type of Operator | Extended Button |
| Lamp Type | Not Applicable |
| Color | Black |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Recessed Push Button |
| Bezel Material | Metal |
| Basic Material | Metal |
| Standards | REACH Free of SVHC, RoHS |
| IP Rating | IP66 |
| Terminal Connection | Not Applicable |
| Series | 9001K |
| Lamp Module Type | Not Applicable |
| Shape Of Signaling Unit Head | round |
| Operator Profile | black flush, recessed |
| Product Or Component Type | head for push-button |
| Cap/Operator Or Lens Colour | black |
| Mounting Diameter | 30 mm |
| Operator Additional Information | metal guard |
| Device Short Name | 9001K |
| Contacts Type And Composition | without contact block |
| Push Button Style | Recessed |
| Legend Color | Not Applicable |
| Overall Height | 1.74 in |
| Operator Illumination | Non-Illuminated |
| NEMA Enclosure Rating | 4, 12, 13, 3, 1, 3R, 2 |
| Operator Material | Metal |
| Head Color | Black |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Hazardous Location Specification | Not Rated |
| Lamp Voltage - Maximum | Not Applicable |
| Maintained Action Release | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Mushroom Head Diameter | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Overall Depth | 1.46 in |
| Number of Indicator Lights | 0 |
| Legend Background Color | Not Applicable |
| Overall Width | 1.69 in |
| Package Quantity | 1 |
