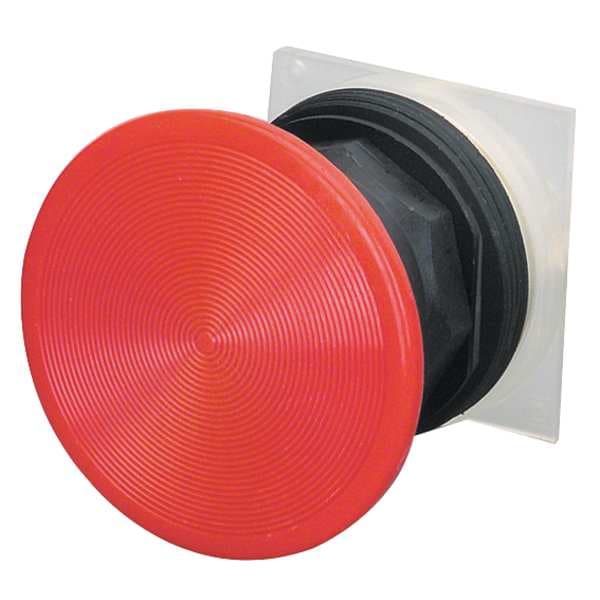

Operador de botón pulsador, 30 mm, Rojo.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Type of Operator | 60mm Mushroom Head |
| Lamp Type | Not Applicable |
| Color | Red |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Item | Mushroom Head Push Button |
| Bezel Material | Plastic |
| IP Rating | IP66 |
| Standards | CE, CSA LR24590 Class 3211 03, REACH Free of SVHC, RoHS, UL E42259 CCN NKCR |
| Basic Material | Plastic |
| Accessory Group | H |
| Terminal Connection | Not Applicable |
| Features | Snap-Fit Assembly, Double Head |
| Lamp Module Type | Not Applicable |
| Series | 9001SK |
| Ip Degree Of Protection | IP64 |
| Contacts Type And Composition | without contact block |
| Light Source | without |
| Light Block Supply | without supply |
| Device Short Name | 9001SK |
| Product Certifications | CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR |
| Operator Additional Information | screw-on plastic with set screw |
| Operator Profile | mushroom Ø 57 mm |
| Mounting Diameter | 30 mm |
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
| Cap/Operator Or Lens Colour | red |
| Product Or Component Type | head for push-button |
| Shape Of Signaling Unit Head | octagonal |
| Operator Material | Plastic |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Mushroom Head Diameter | 57 mm |
| Hazardous Location Specification | Not Rated |
| Head Color | Red |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Overall Depth | 1.77 in |
| Push Button Style | Mushroom Head |
| Legend Background Color | Not Applicable |
| Legend Color | Not Applicable |
| Resistance Properties | Dust Resistant, Impact Resistant, Vibration Resistant, Watertight |
| Number of Indicator Lights | 0 |
| Overall Width | 1.69 in |
| Overall Height | 1.74 in |
| Maintained Action Release | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
