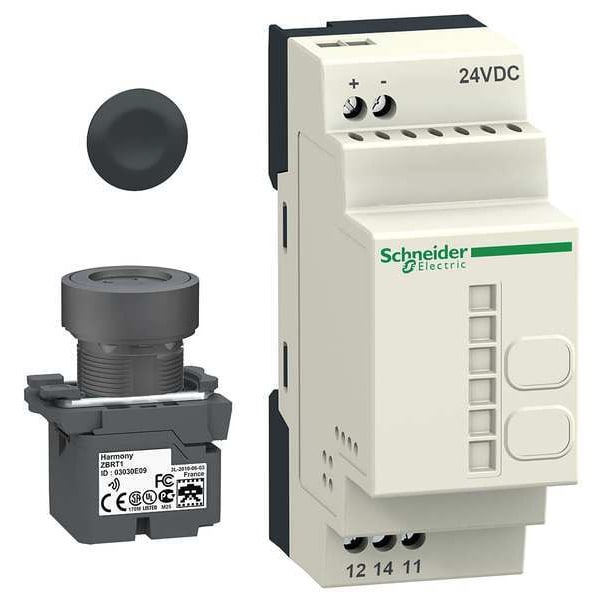

Kit de transmisor y receptor de botón pulsador, 22 mm, negro y marfil.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| NEMA Rating | 12 |
| Type of Operator | Flush Push Button |
| Color | Black and Ivory |
| Legend | None |
| Number of Operators | 1 |
| Item | Wireless Push Button Kit |
| Voltage | 24V DC |
| Material | Plastic |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508 |
| Length | 4.21 in |
| Width | 4.02 in |
| Height | 3.58 in |
| Includes | Non-Programmable Receiver with (1) Relay Output |
| IP Rating | IP30 |
| Legend Markings | No Legend |
| Series | XB5R |
| Length (Straight Wireway) | 4.21 in |
| Bandwidth | 5-5 MHz |
| Compatibility Code | XB5R |
| Type Of Receiver | non-programmable receiver 1 relay |
| Antenna Gain | 0 dBi |
| Marking | CE |
| Product Or Component Type | wireless and batteryless package |
| Transmission Frequency | 2405 MHz transmitter || 2405 MHz receiver |
| Device Short Name | XB5R |
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Product Certifications | UL || C-tick || GOST || CSA || CCC |
| Level Or Class | 5M00G7W |
| [Us] Rated Supply Voltage | 24 V, 24 V DC |
| Antenna Type | omnidirectional |
| Kit Composition | 1 22 mm || 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 push-button head 22 mm |
| Modulation Technique | O-QPSK |
| Number Of Channels | 1 |
| Max Power Consumption In W | 1 mW |
| Radio Agreement | SRRC || ICASA || RSS || ANATEL || FCC || ARIB T66 |
| Customizable | no |
| Control Type | batteryless push-button Ø 22 mm assembled on fixing collar, wireless |
| Legend Color | Not Applicable |
| Maintained Action Release | Not Applicable |
| Push Button Style | Flush |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 12 |
| Overall Height | 3.94 in |
| Overall Width | 1.42 in |
| Operator Voltage Rating - Maximum | 24 V DC |
| Operator Material | Plastic |
| Panel Cutout Diameter | 22 mm |
| Overall Depth | 2.78 in |
| Head Color | Black |
| Operator Illumination | Non-Illuminated |
| Legend Background Color | Not Applicable |
| Manufacturer Warranty Length | 18 mo |
| Resistance Properties | Chemical Resistant |
| Package Quantity | 1 |
