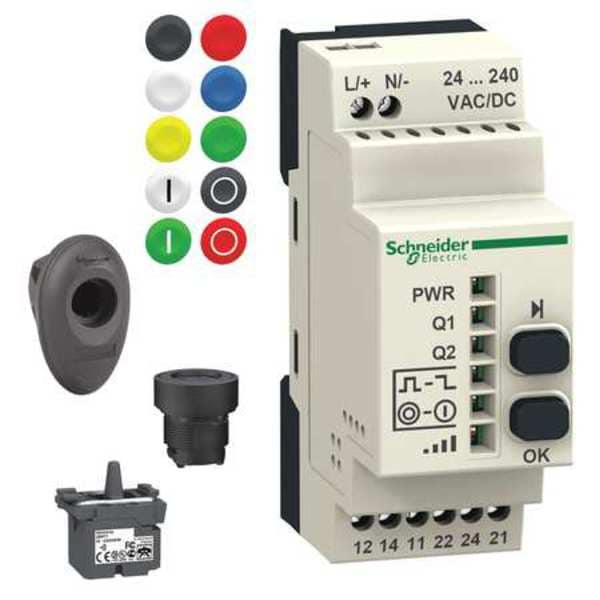

Kit de transmisor y receptor de botón de empuje, 22 mm, universal.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Plastic |
| NEMA Rating | 12 |
| Type of Operator | Flush Push Button |
| Color | Universal |
| Legend | None |
| Number of Operators | 1 |
| Item | Wireless Push Button Kit |
| IP Rating | IP30 |
| Legend Markings | No Legend |
| Material | Plastic |
| Width | 4.02 in |
| Length | 4.21 in |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508 |
| Height | 3.58 in |
| Includes | (1) Set Multiple Color Caps, Programmable Receiver with (2) Relay Outputs, Pushbutton Handy Box |
| Voltage | 24 to 240V AC/DC |
| Series | XB5R |
| Length (Straight Wireway) | 4.21 in |
| Compatibility Code | XB5R |
| Antenna Type | omnidirectional |
| Kit Composition | 1 22 mm || 1 transmitter || 1 set of caps || 1 receiver || 1 fixing collars || 1 push-button head 22 mm || 1 handy box |
| Customizable | no |
| Transmission Frequency | 2405 MHz transmitter || 2405 MHz receiver |
| Product Certifications | CCC || CSA || C-tick || GOST || UL |
| Level Or Class | 5M00G7W |
| Device Short Name | XB5R |
| Status Led | 1 LED Green power ON || 2 LEDs Green relay ON || 2 LEDs Green function mode || 1 LED green and yellow reception signal |
| Max Power Consumption In W | 1 mW |
| Modulation Technique | O-QPSK |
| Product Or Component Type | wireless and batteryless package |
| Control Type | wireless and batteryless push-button handy box assembled on fixing collar |
| Type Of Receiver | programmable receiver 2 relays |
| Radio Agreement | ANATEL || SRRC || ICASA || FCC || ARIB T66 || RSS |
| Antenna Gain | 0 dBi |
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Bandwidth | 5-5 MHz |
| [Us] Rated Supply Voltage | 24 to 240 V, 24 to 240 V AC/DC 50/60 Hz |
| Number Of Channels | 1 |
| Marking | CE |
| Mushroom Head Diameter | Not Applicable |
| NEMA Enclosure Rating | 12 |
| Overall Depth | 2.94 in |
| Maintained Action Release | Not Applicable |
| Push Button Style | Flush |
| Legend Color | Not Applicable |
| Legend Background Color | Not Applicable |
| Panel Cutout Diameter | 22 mm |
| Operator Illumination | Non-Illuminated |
| Overall Height | 3.94 in |
| Operator Voltage Rating - Maximum | 24 to 240V AC/DC |
| Operator Material | Plastic |
| Manufacturer Warranty Length | 18 mo |
| Head Color | Red, Green, Black, White, Yellow, Blue |
| Overall Width | 1.42 in |
| Package Quantity | 1 |
