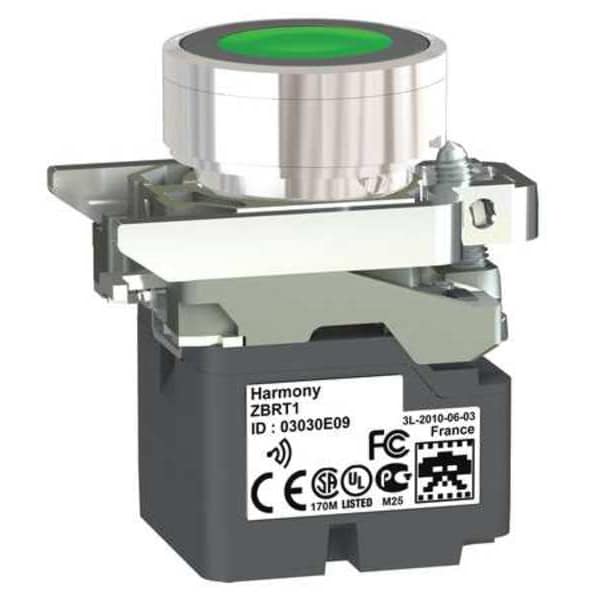

Botón pulsador con transmisor, 22 mm, verde.
| Action | Momentary |
|---|---|
| Size | 22 mm |
| Head Material | Metal |
| NEMA Rating | 12 |
| Type of Operator | Flush Push Button |
| Color | Green |
| Legend | None |
| Number of Operators | 1 |
| Item | Wireless Push Button Transmitter |
| Bezel Material | chromium plated metal |
| Legend Markings | No Legend |
| IP Rating | IP30 |
| Material | Metal |
| Height | 1.3 in |
| Width | 3.39 in |
| Standards | CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508 |
| Length | 2.05 in |
| Series | XB4R |
| Length (Straight Wireway) | 2.05 in |
| Product Certifications | BT 2006/95/EC || C-tick || CCC || UL || GOST || CSA |
| Operator Profile | green flush |
| Mechanical Durability | 1,000,000 cycle |
| Level Or Class | 5M00G7W |
| Fixing Mode | fixing screw beneath head 0.8-1.2 N.m |
| Electromagnetic Compatibility | electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3 |
| Shape Of Signaling Unit Head | round |
| Cad Overall Height | 41.5 mm |
| Protective Treatment | TH |
| Number Of Channels | 16 |
| Fixing Collar Material | zamak |
| Mounting Diameter | 22 mm |
| Radio Agreement | ANATEL || ARIB T66 || FCC || ICASA || RSS |
| Cad Overall Depth | 43 mm |
| Modulation Technique | O-QPSK |
| Operating Force | 10 N C/O changing electrical state |
| Max Power Consumption In W | 1 mW |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Bandwidth | 5-5 MHz |
| Cad Overall Width | 30 mm |
| Response Time | < 2 msec |
| Antenna Type | omnidirectional |
| Embedding Depth | 42 mm |
| Ambient Air Temperature For Operation | -40-70°C |
| Device Short Name | XB5R |
| Antenna Gain | 0 dBi |
| Ambient Air Temperature For Storage | -40-70°C |
| Communication Port Protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
| Relative Humidity | 95-95 % -40-70°C without condensation |
| Maximum Sensing Distance | 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
| Shock Resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Product Or Component Type | wireless and batteryless transmitter |
| Ip Degree Of Protection | IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face) |
| Operating Travel | 4.3 mm total travel) |
| Emission Power | 3 mW |
| Transmission Frequency | 2,405 MHz |
| Mechanical Robustness | free fall resistance 1000 mm EN/IEC 60068-2-32 |
| Acquisition Time | 2 ms |
| Electrical Composition Code | PW1 |
| Vibration Resistance | 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6 |
| Operator Illumination | Non-Illuminated |
| Head Color | Green |
| Manufacturer Warranty Length | 18 mo |
| Panel Cutout Diameter | 22 mm |
| Mechanical Operating Durability | 1,000,000 |
| Maintained Action Release | Not Applicable |
| NEMA Enclosure Rating | 12 |
| Overall Depth | 2.05 in |
| Legend Color | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Legend Background Color | Not Applicable |
| Overall Height | 1.82 in |
| Operator Material | Metal |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Mushroom Head Diameter | Not Applicable |
| Overall Width | 1.18 in |
| Push Button Style | Flush |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
