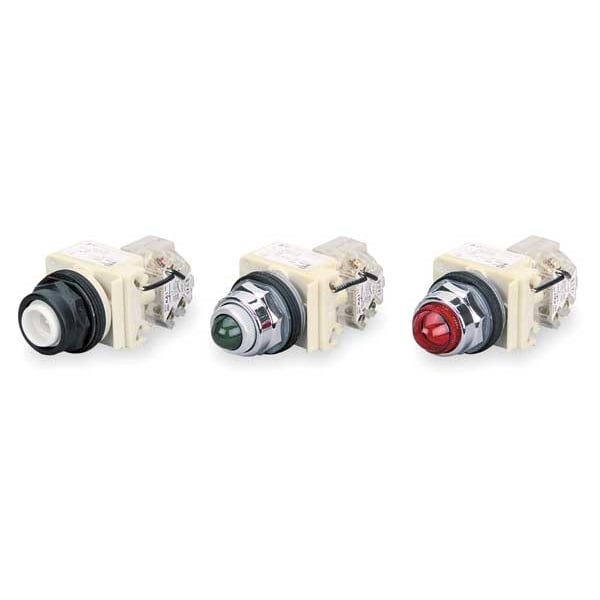

Presione para probar la luz piloto, clara, incandescente.
| Item | Pilot Light |
|---|---|
| Voltage | 120V AC |
| Action | Push-to-test |
| Lamp Type | Incandescent |
| Shape | Round |
| Terminal Connection | Screw Clamp |
| Contact Form | 1 C/O |
| Lens Material | No Lens Included |
| Bezel | Plastic |
| Size | 30 mm |
| Lens Type | No Lens Included |
| Lamp Module Type | Transformer |
| Basic Material | Plastic |
| IP Rating | IP66 |
| Body Material | Plastic |
| Standards | REACH, RoHS, WEEE |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X, 6 |
| Includes | 1NO Contact Block |
| Replacement Lamps | 4CVW2 |
| Lamp Voltage | 6V AC/DC |
| Hz | 50/60 Hz |
| Legend | Not Applicable |
| Mounting Diameter | 1.18 in |
| Rated Supply Voltage | 110 to 120 V |
| Light Source | Incandescent bulb |
| Supply Frequency | 50 to 60 Hz |
| Product Or Component Type | Head for pilot light |
| Bulb Base | BA 9s |
| Cap/Operator Or Lens Color | Without cap |
| IP Degree Of Protection | IP66 |
| Light Block Supply | Via transformer 110 V AC 50/60 Hz; Via transformer 120 V AC 50/60 Hz |
| Protective Treatment | TC |
| Voltage Rating - Maximum | 120 V AC |
| Lens Color | No Lens Included |
| Includes Push-To-Test | Push-To-Test Included |
| Lamp Voltage - Maximum | 6 V AC/DC |
| Hazardous Location Specification | Not Applicable |
| Overall Depth | 1.62 in |
| Overall Width | 2.13 in |
| Manufacturer Warranty Length | 18 mo |
| Includes Lamp Module | Lamp Module Included |
| Includes Lens | No Lens Included |
| Resistance Properties | Corrosion Resistant |
| Panel Cutout Diameter | 30 mm |
| Overall Height | 3.37 in |
| Lamp Color | Not Applicable |
| NEMA Enclosure Rating | 13, 4, 12, 3, 4X, 3R, 1, 2, 6 |
| Series | 9001SK |
| ATEX Explosive Environment Rating | Not Applicable |
| Package Quantity | 1 |
